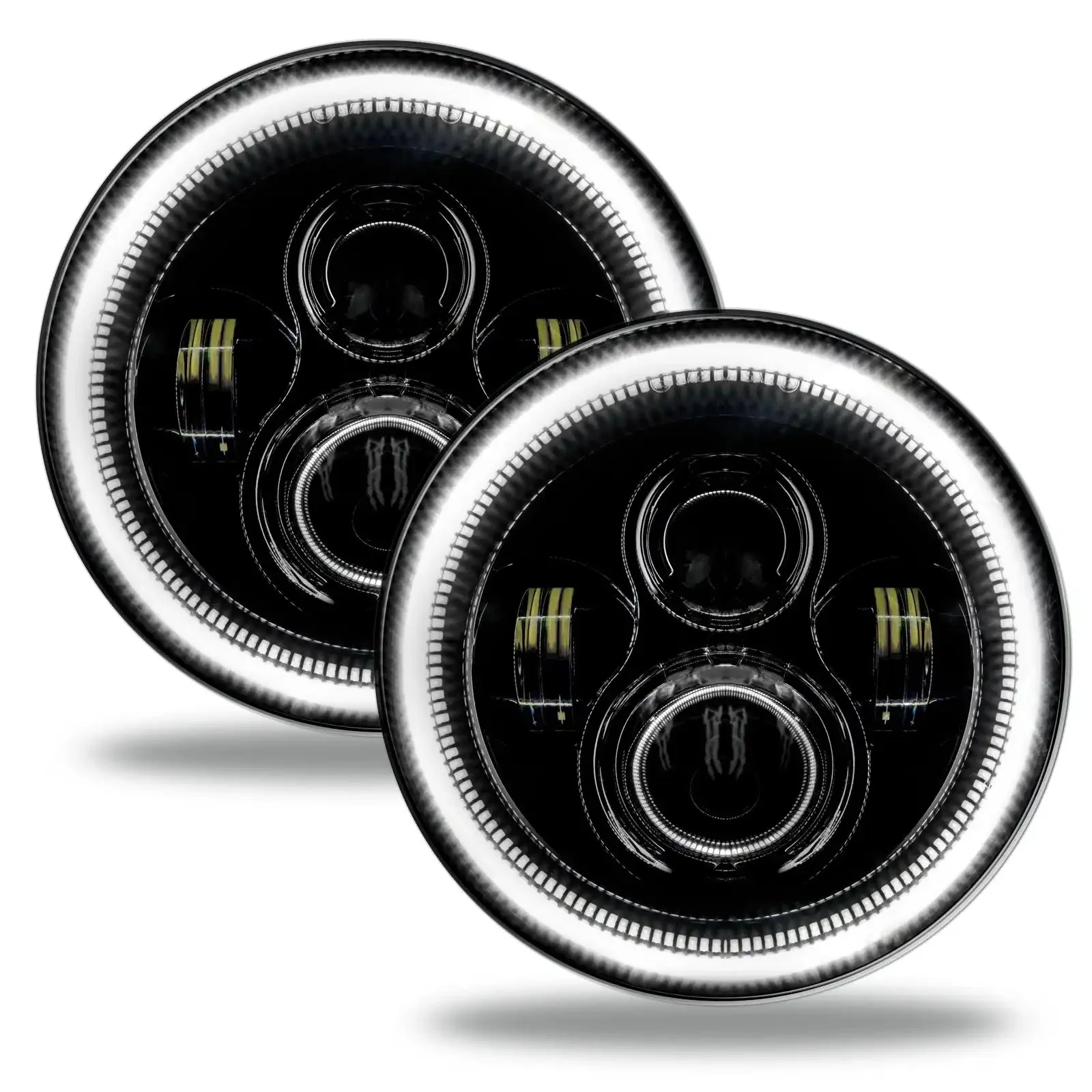

7" High Powered LED Headlights | DOT Certified Sealed Beam Replacement | Jeep Wrangler & Classic Cars

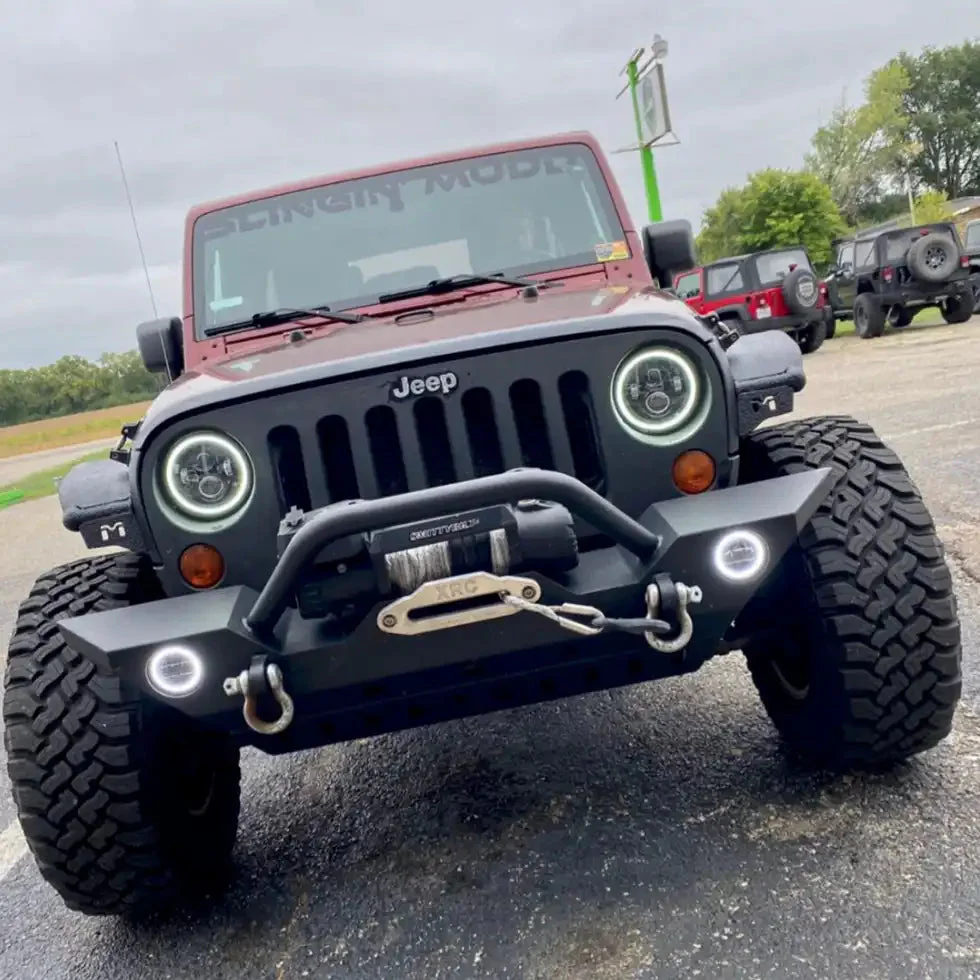

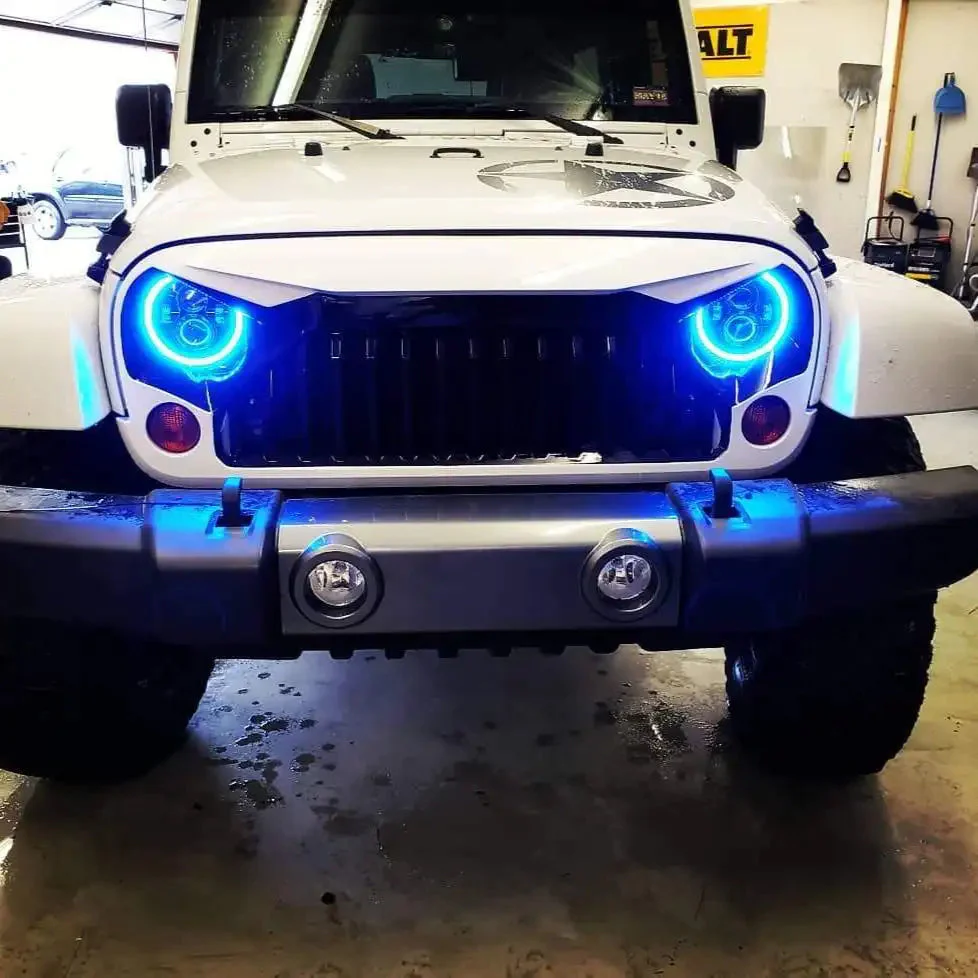

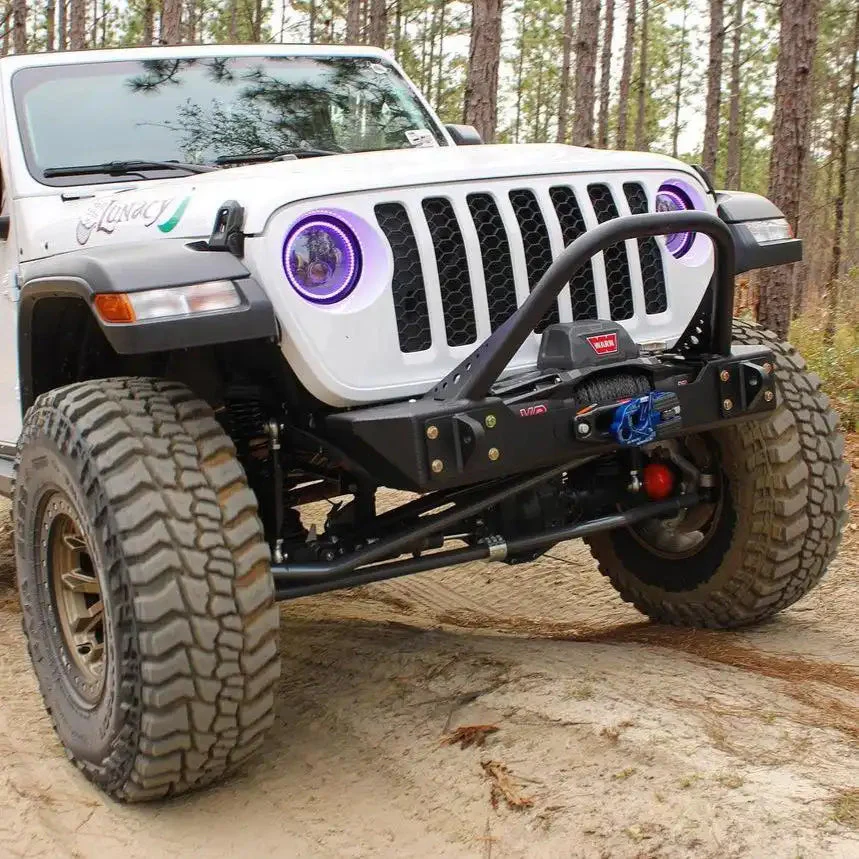

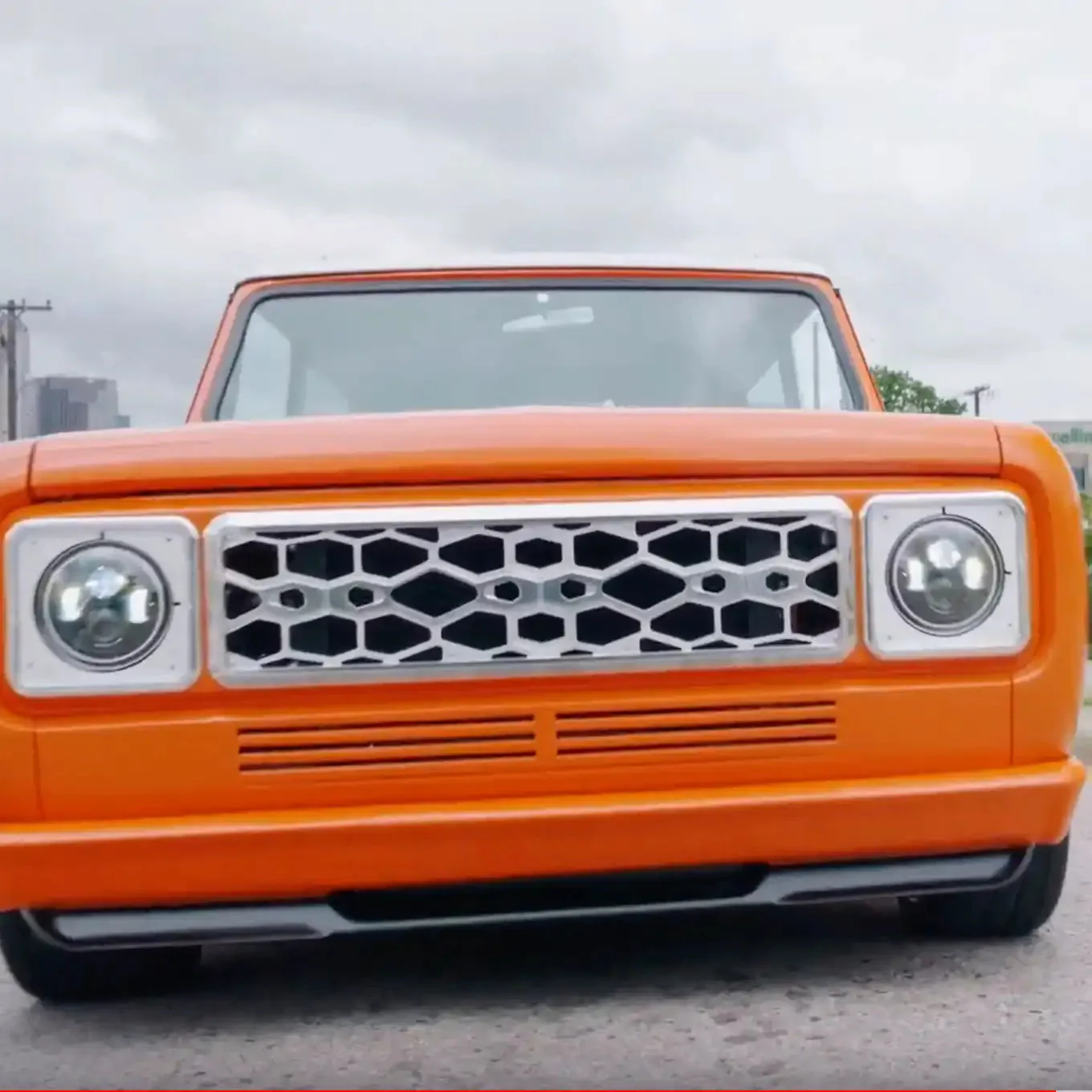

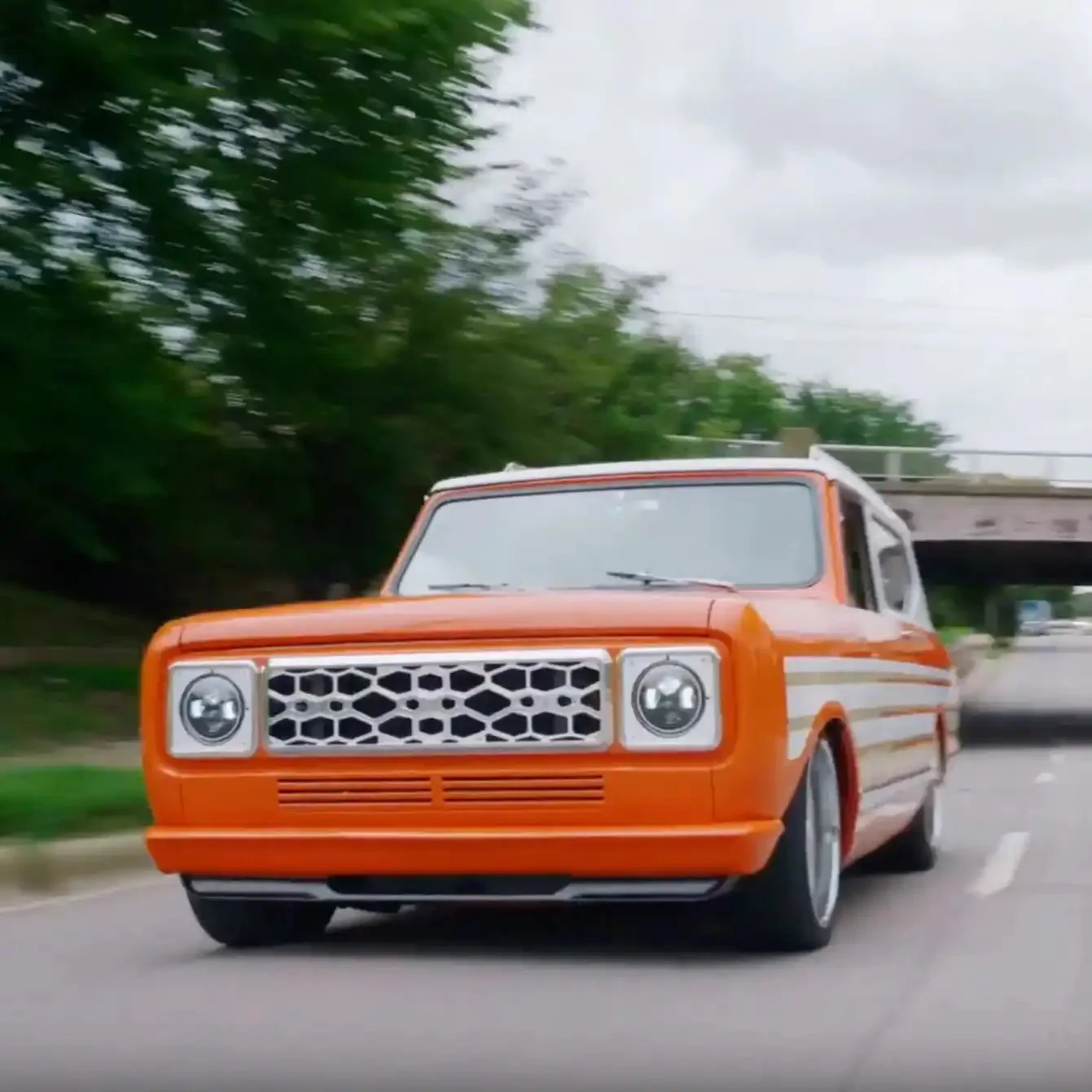

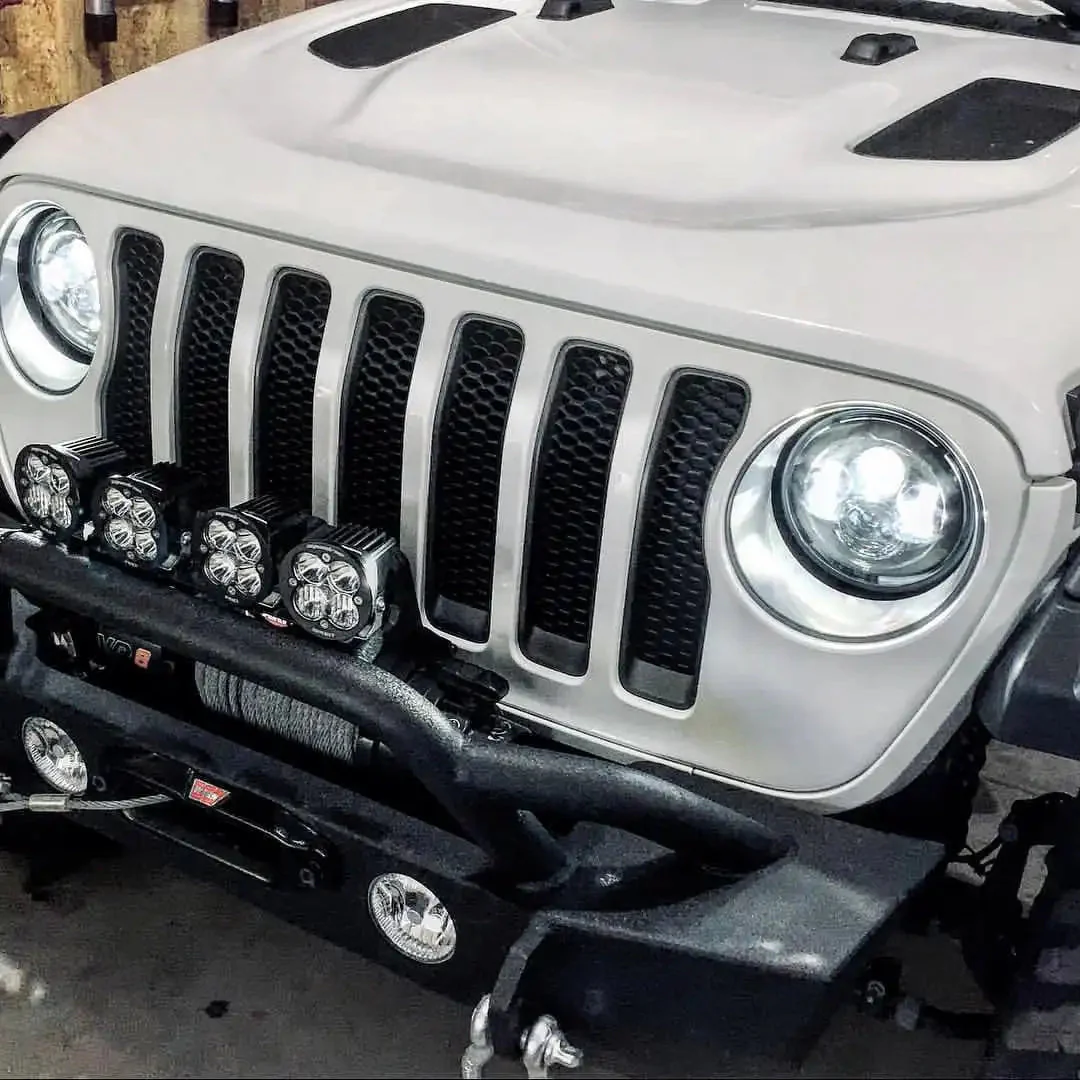

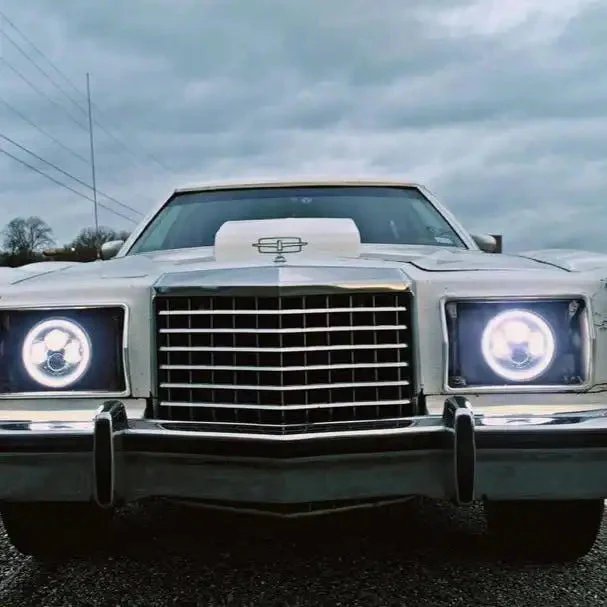

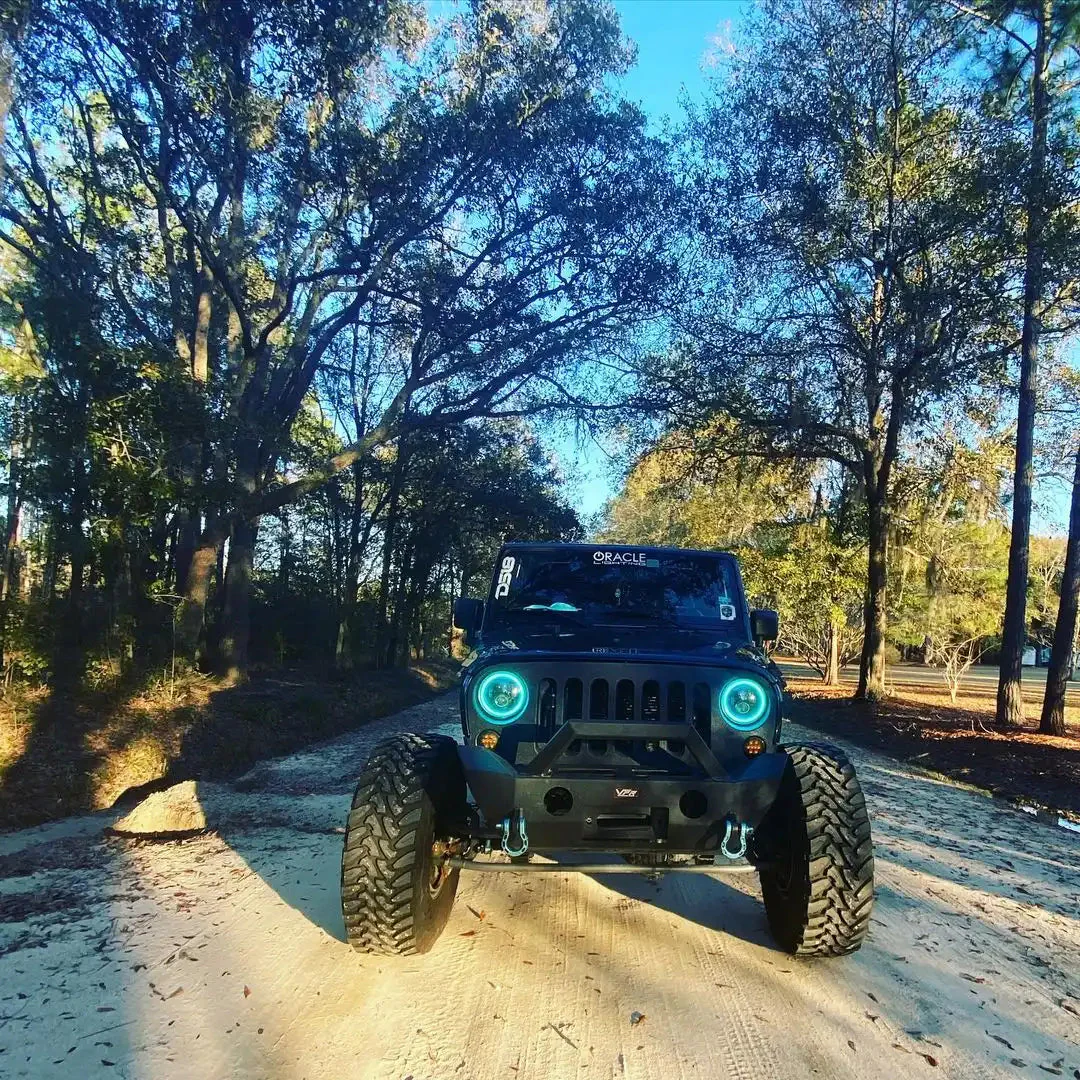

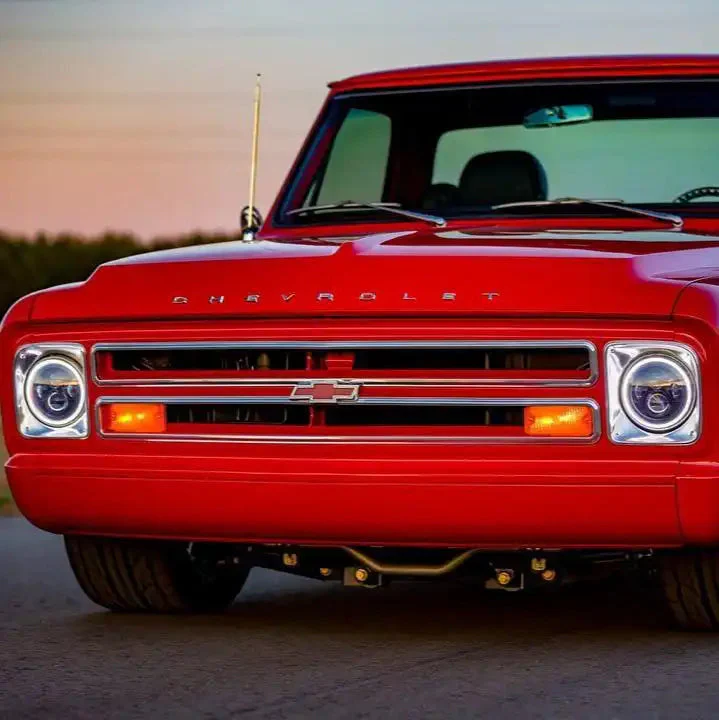

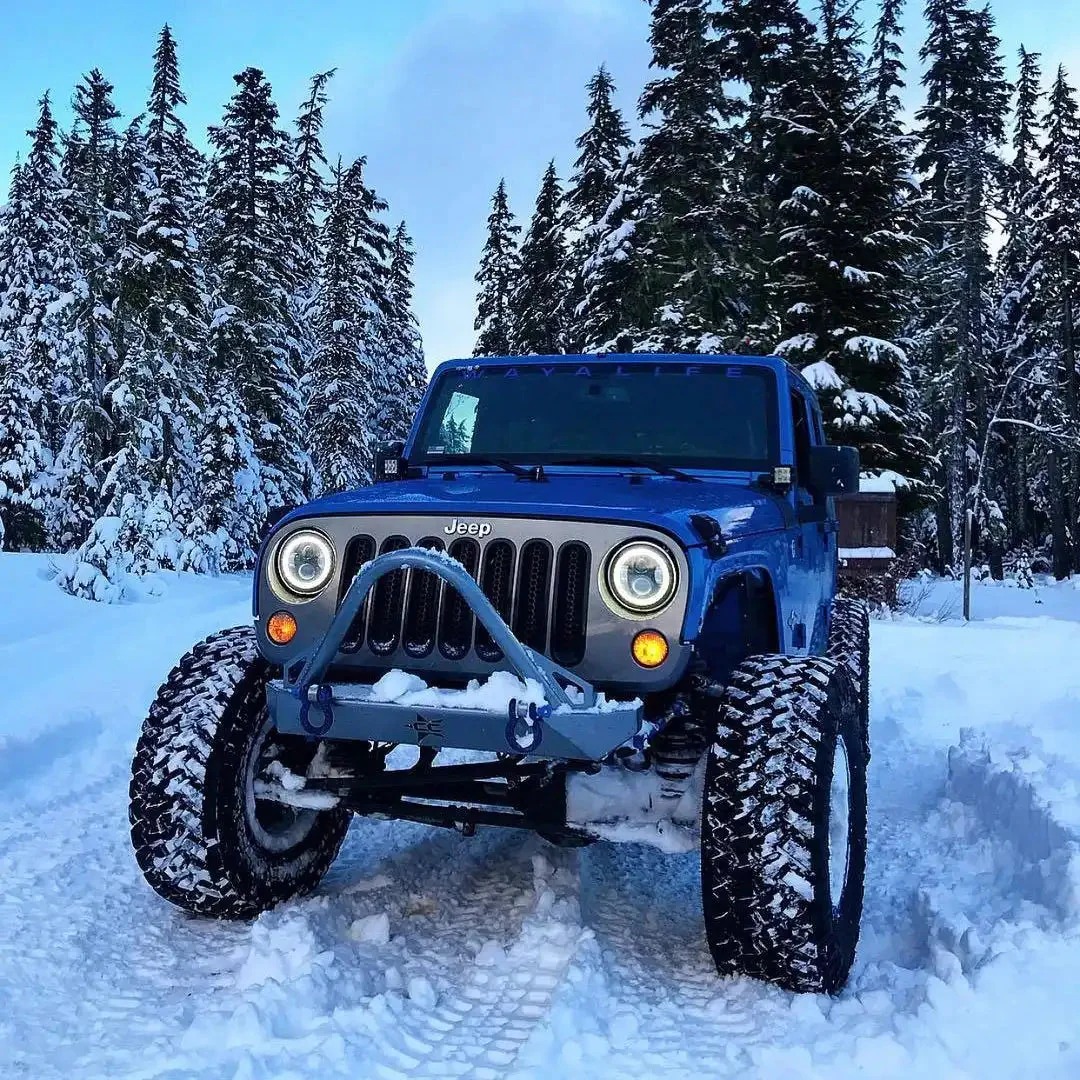

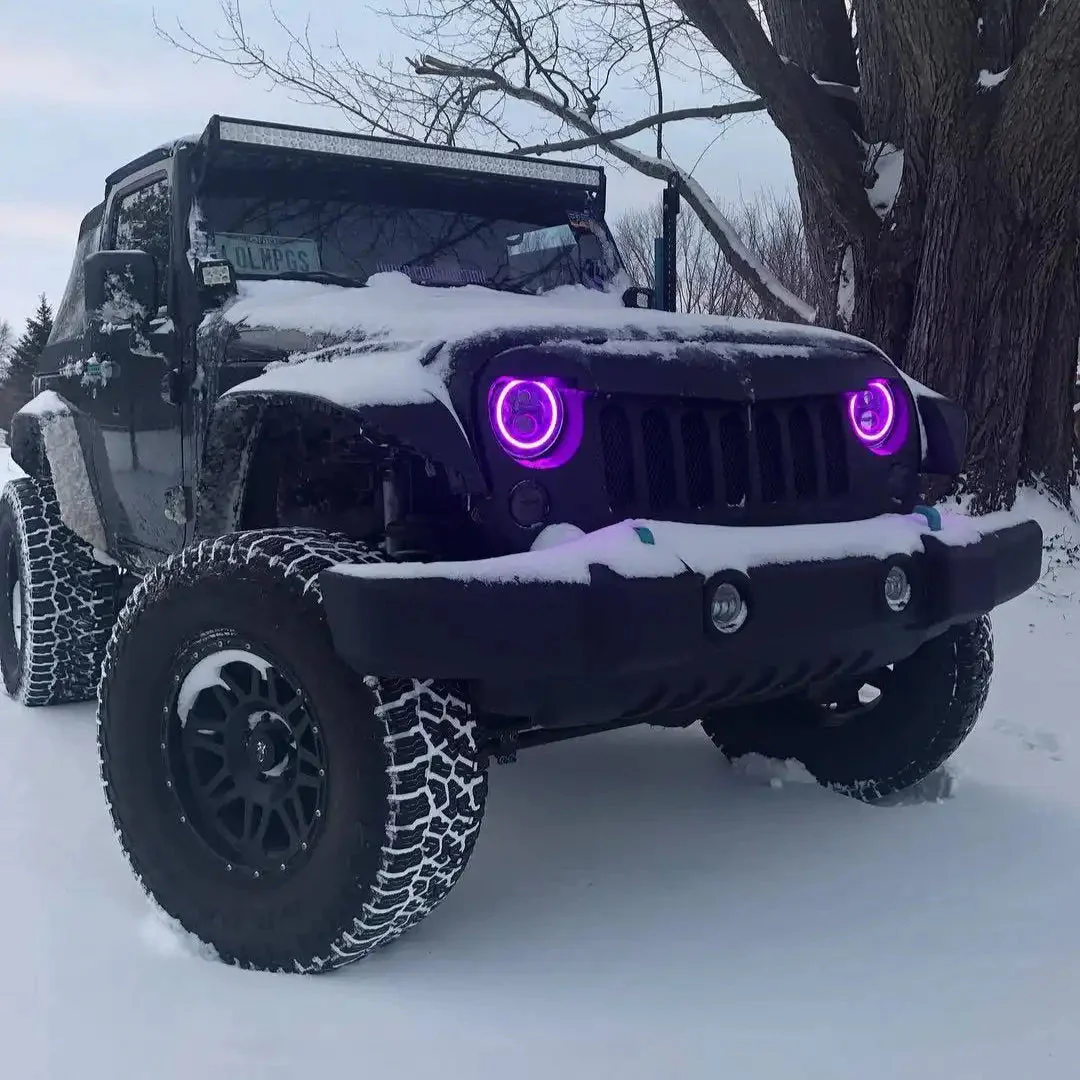

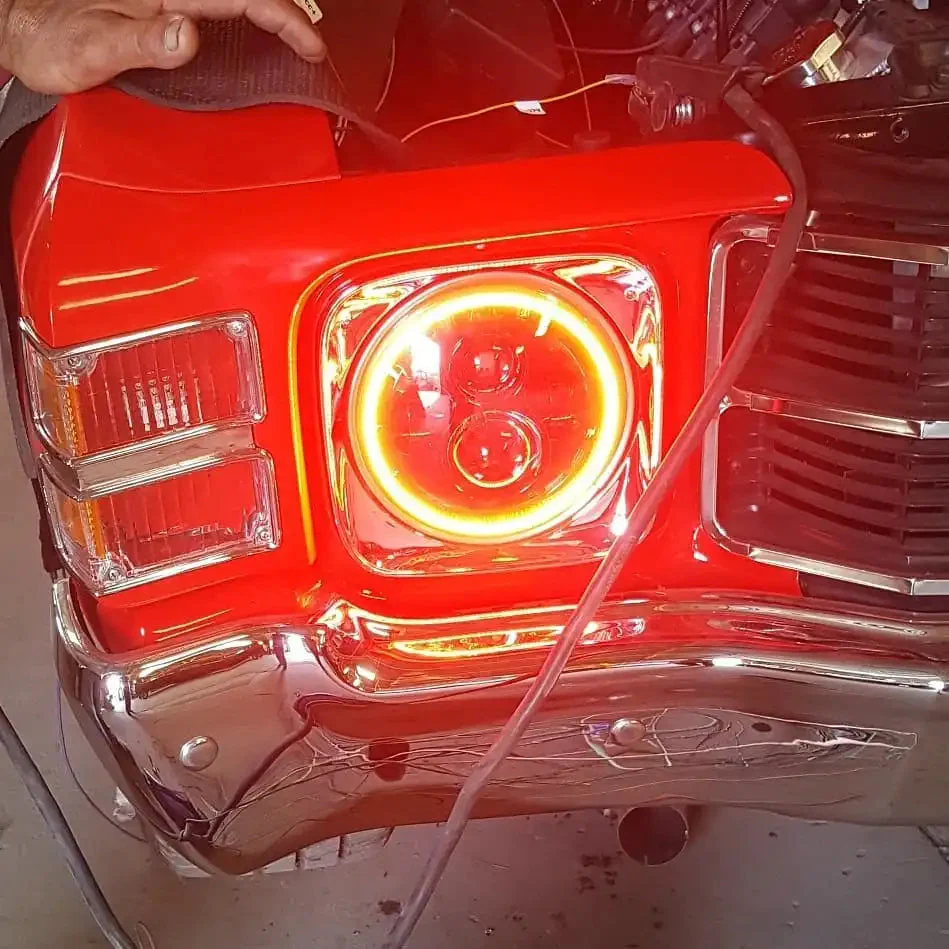

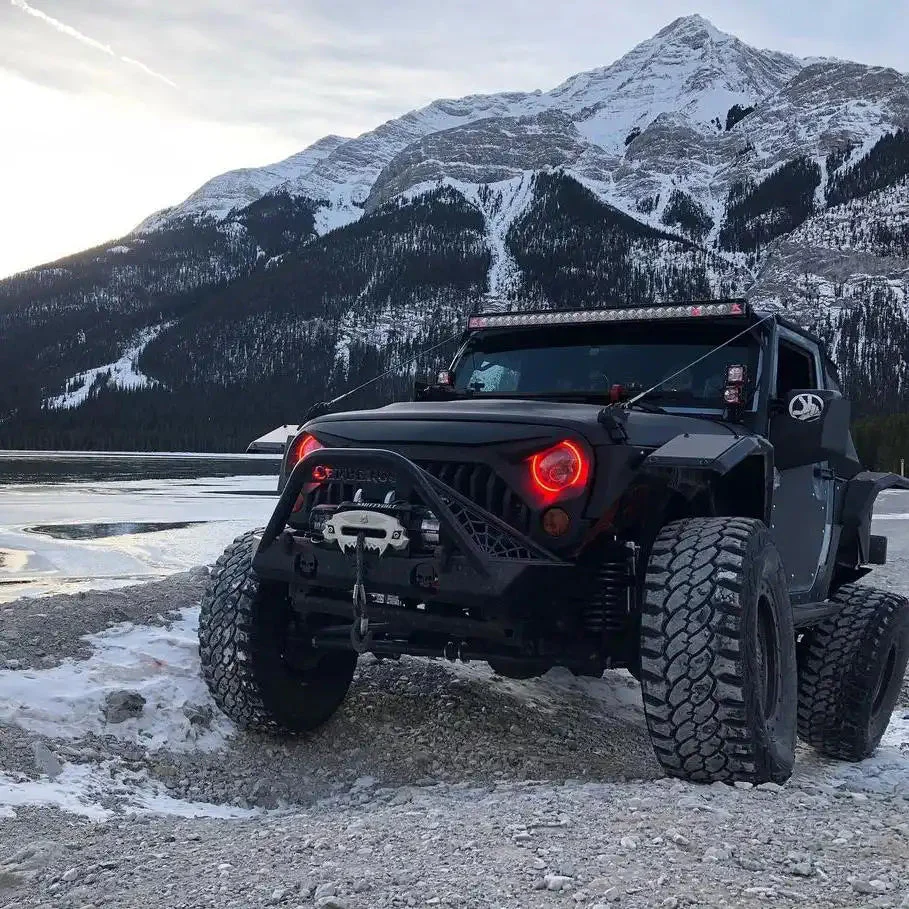

The ORACLE 7" High Performance LED Headlights are designed as a premium replacement for any vehicle with 7" sealed beam lamps. The rugged design is ideal for Jeep Wranglers, off-road vehicles, buggies, and classic cars or trucks looking for modern lighting performance and updated styling.

Installation is easy with the included H4 and H13 plug-and-play connectors. Each set comes in full-color retail-ready packaging and includes a 2-year free replacement warranty.

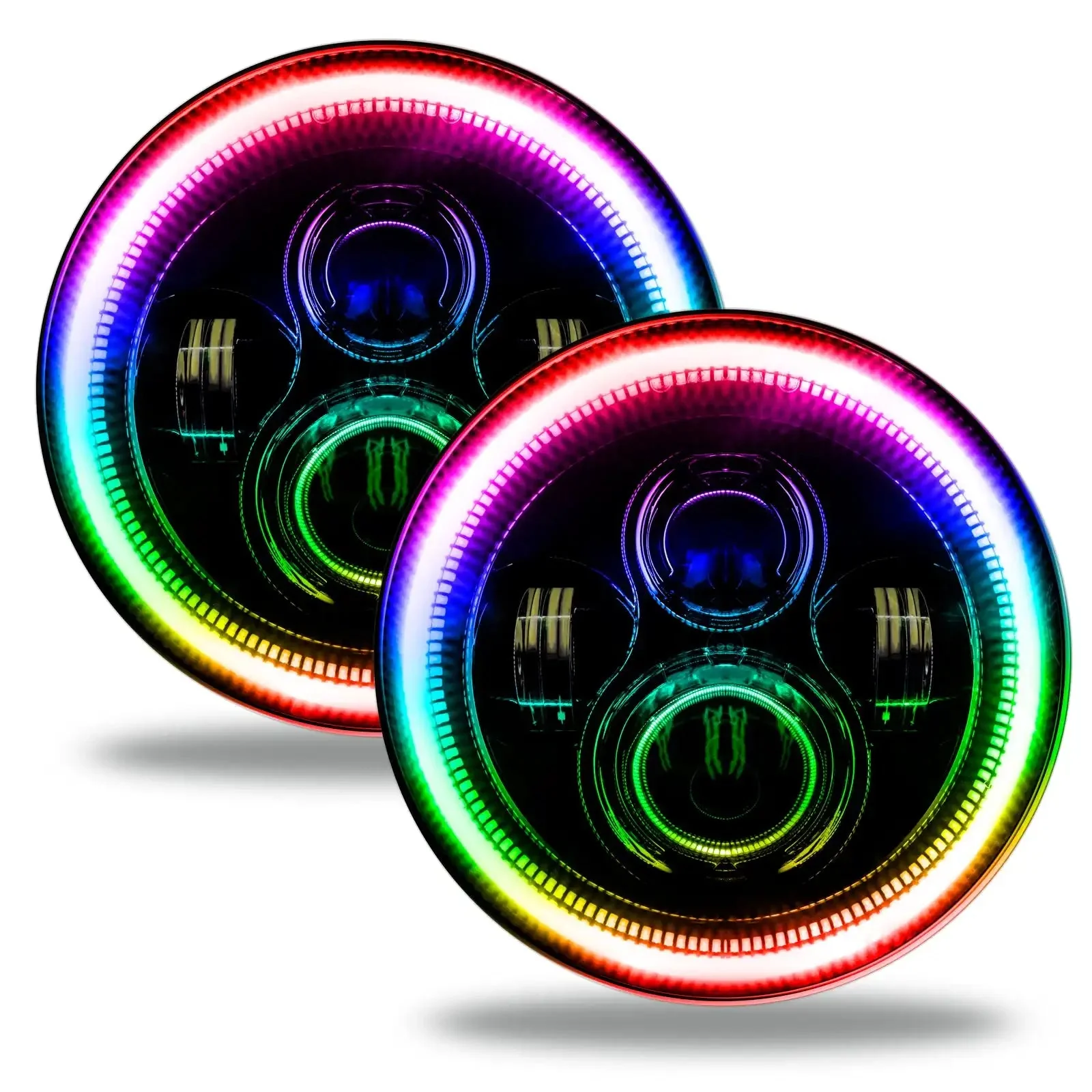

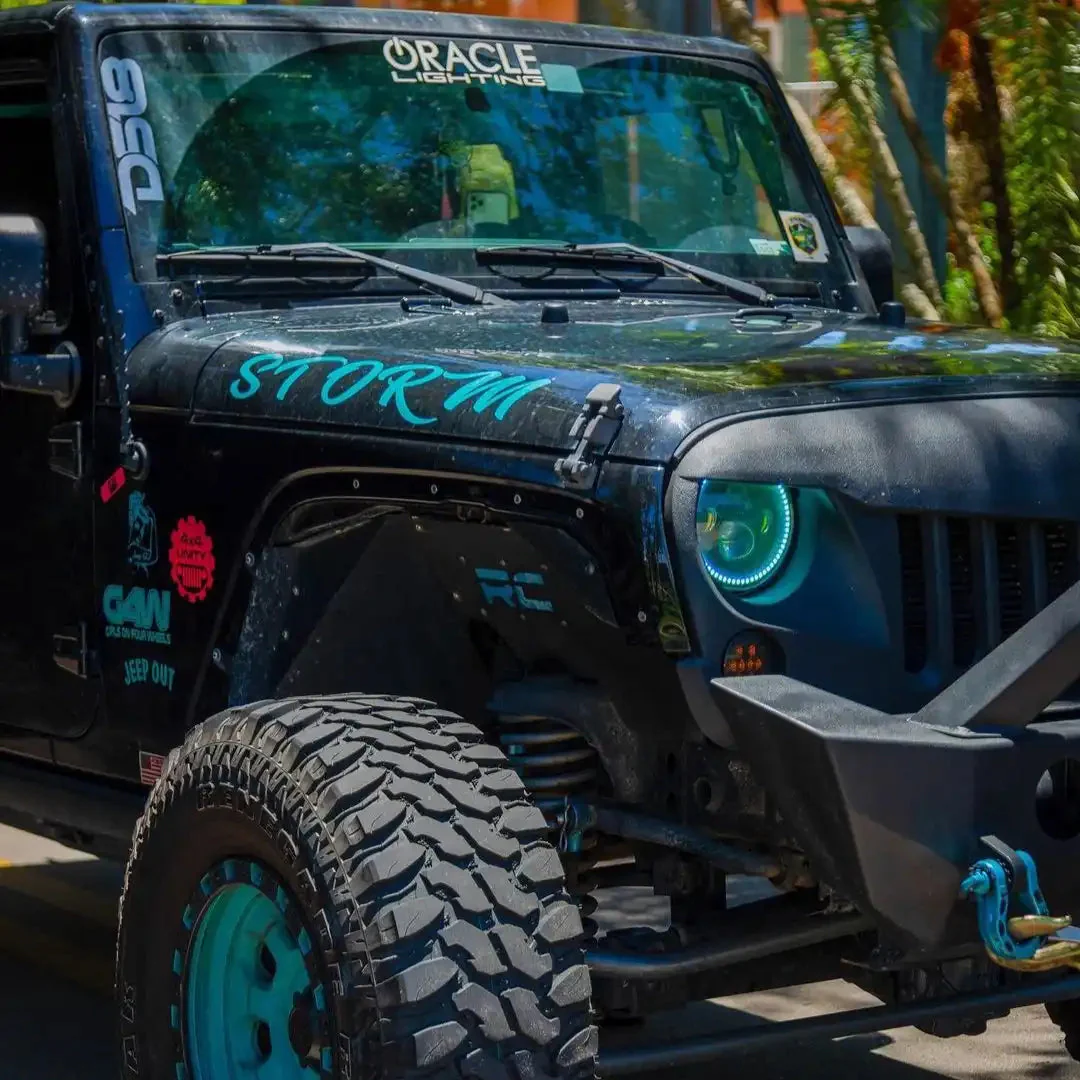

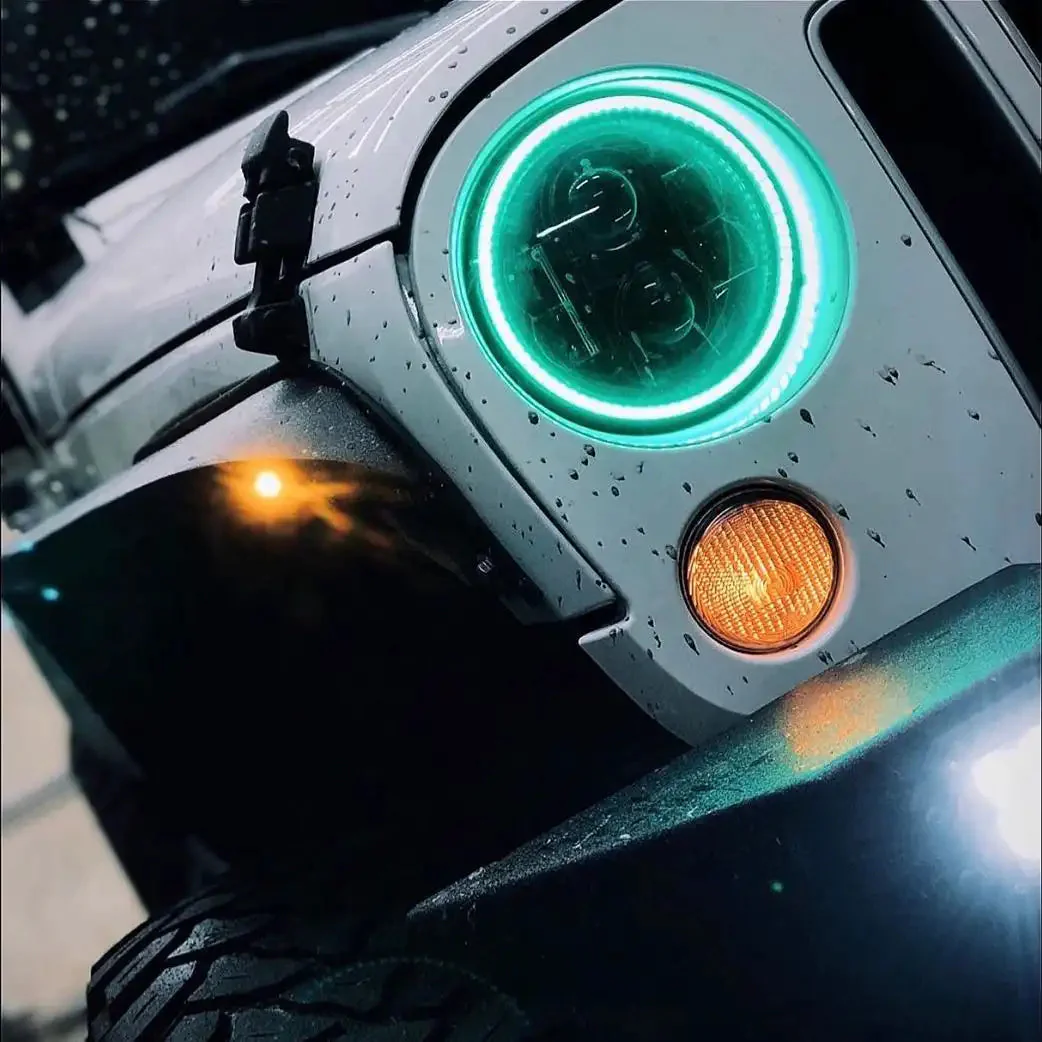

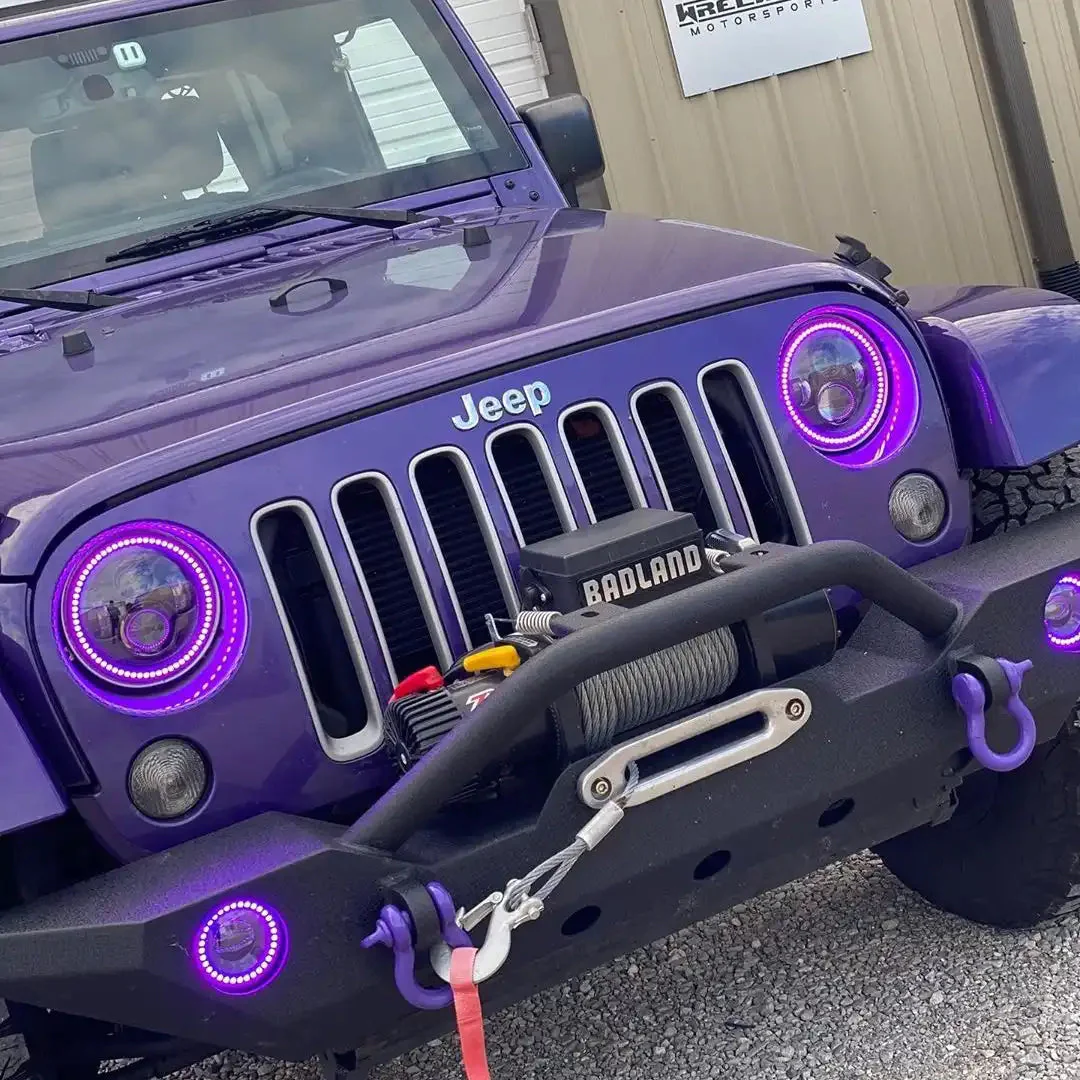

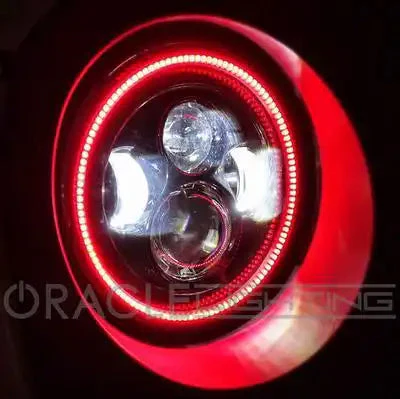

Optional colored halos are also available for added customization.

• Low Beam Wattage: 30W Normal / 36W Max
• Low Beam Lumens: 2200 Lumens / 3600 Raw Lumens
• High Beam Wattage: 40W Normal / 48W Max
• High Beam Lumens: 3600 Lumens / 4800 Raw Lumens
• Color Temperature: 6000K (Cool White)
• Input Voltage of Light: 12–24V DC
• Input Voltage of Halo (if included): 12V DC
• Current Draw: 2.50A @ 12V DC / 1.30A @ 24V DC
• Optional: ORACLE Halo Rings Pre-Installed
• LEDs: Premium Performance Phillips Luxeon ZES LEDs
• Housing: Die-Cast Housing with Corrosion Resistant Coating
• Electronics: Heavy Duty Solid State Electronics
• Lens: Hard-Coated Polycarbonate Lens
• Beam Pattern: Wide Beam Pattern with Sharp Cut-Off Line
• Installation: Easy Plug & Play Installation
• Certifications: DOT and SAE Certified
• 2 Year Warranty

• Improved brightness and reliability by adding a constant current LED driver to the main circuit board inside the lamp to control the halos
• NEW: No need for Anti-Flicker Wiring Adapters—the SMART Integrated Can-Bus system automatically adjusts to help prevent flicker issues
• Increased reliability by conditioning power going into the LEDs to help prevent degradation that can shorten product lifespan
• Wider input voltage range—new SMD halos can operate from 12V–24V so voltage spikes do not damage the LEDs
• Brighter LED halos—moving the heat load of the resistors off the PCB allows more LEDs on the circuit board without thermal issues
• LED chips upgraded from Cree to Phillips Luxeon ZES for a high efficacy 130LM/W ratio with lower thermal output

We recommend matching fog lights: ORACLE Part #5846

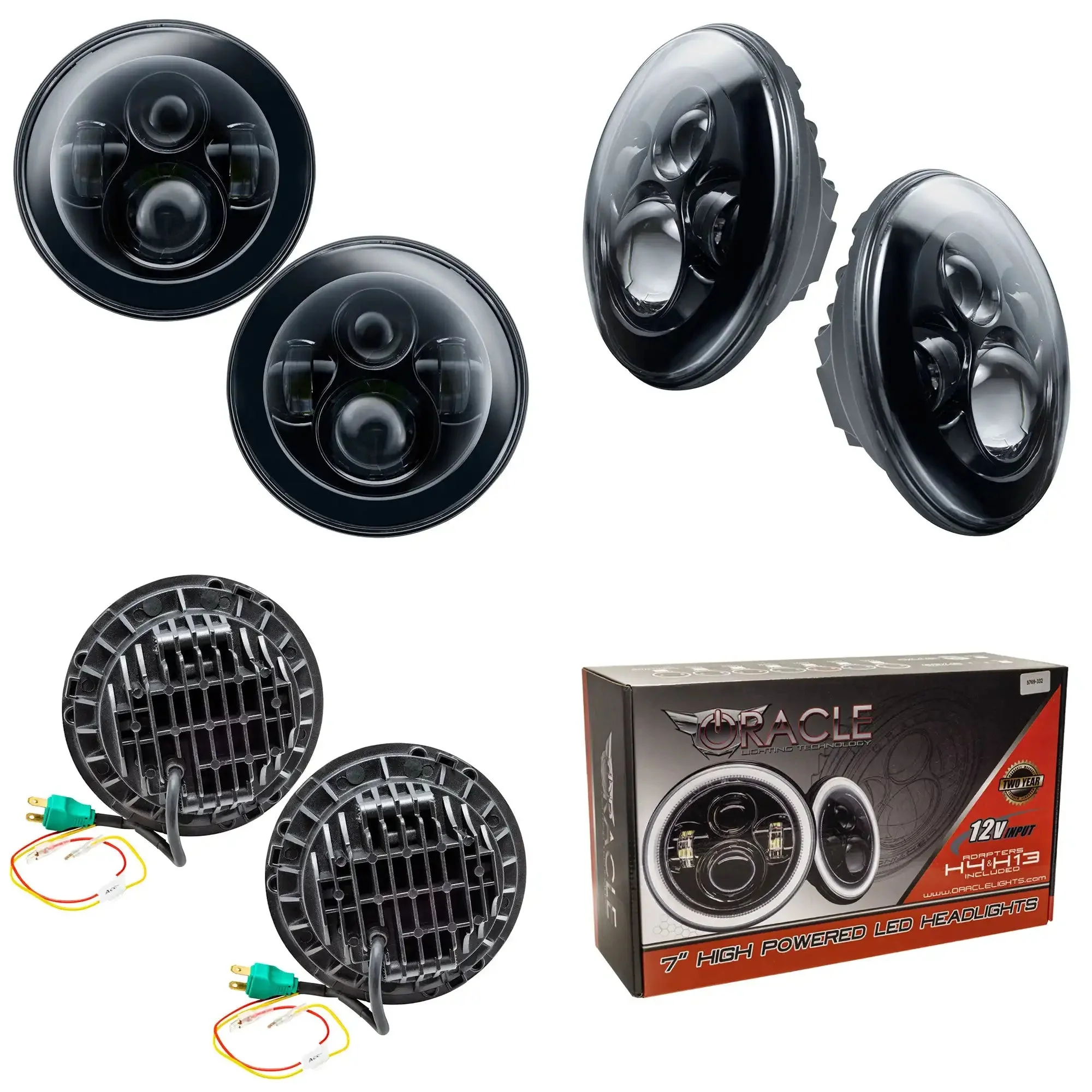

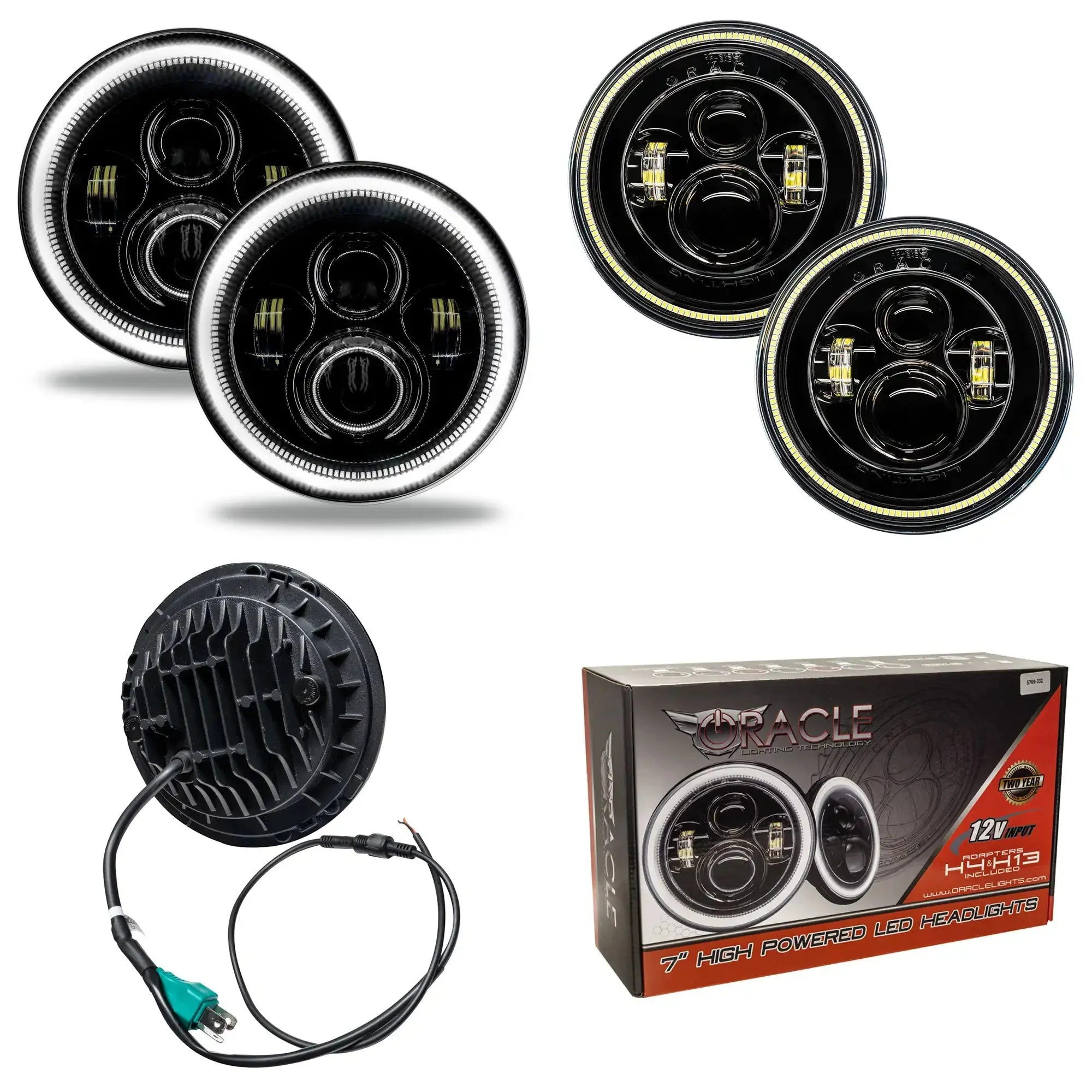

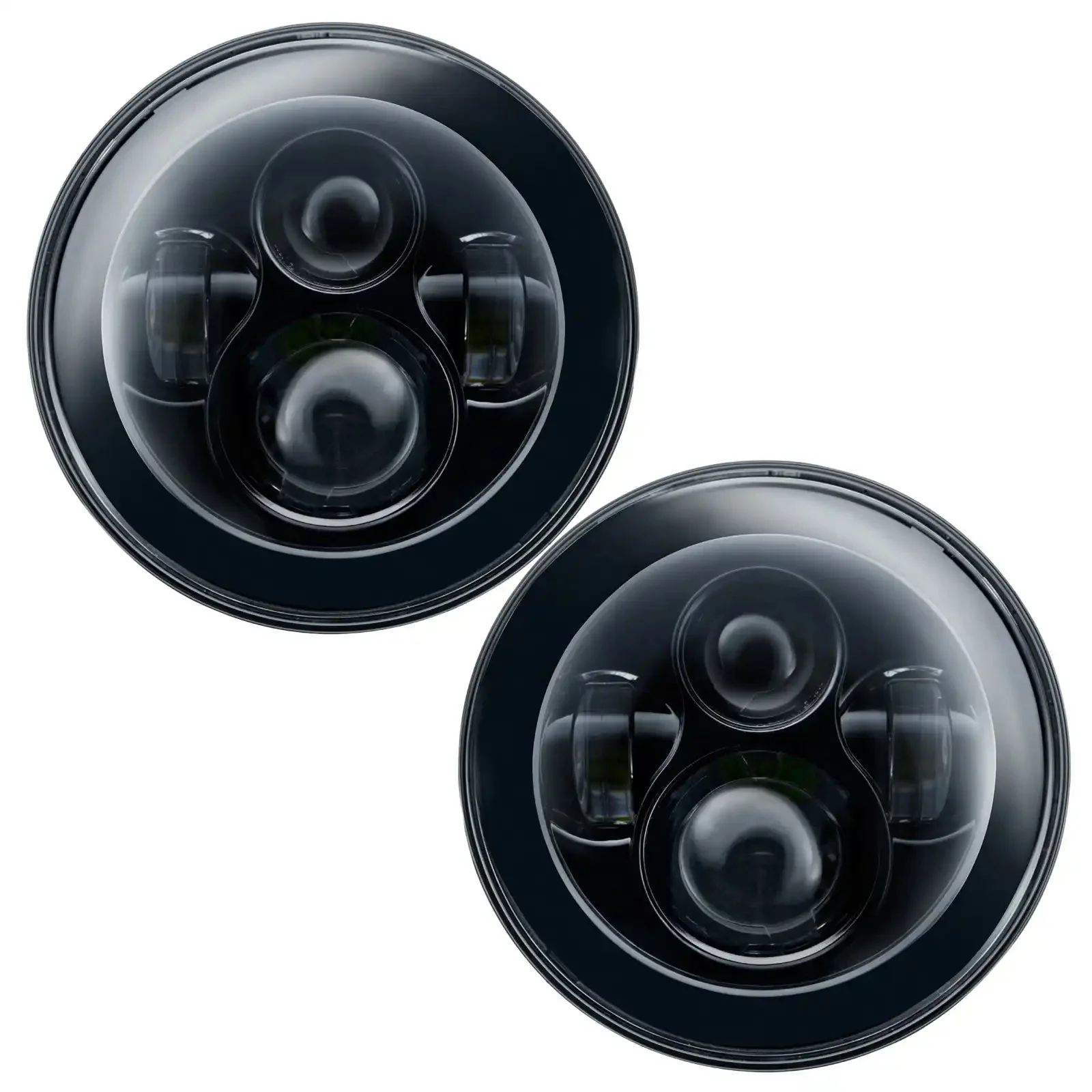

• (2) ORACLE Lighting 7" High Powered LED Headlights with Black Bezel
• H4 / H13 Connectors

Basic Wiring

• Red Wire: Positive (+)
• Black Wire: Negative (-)

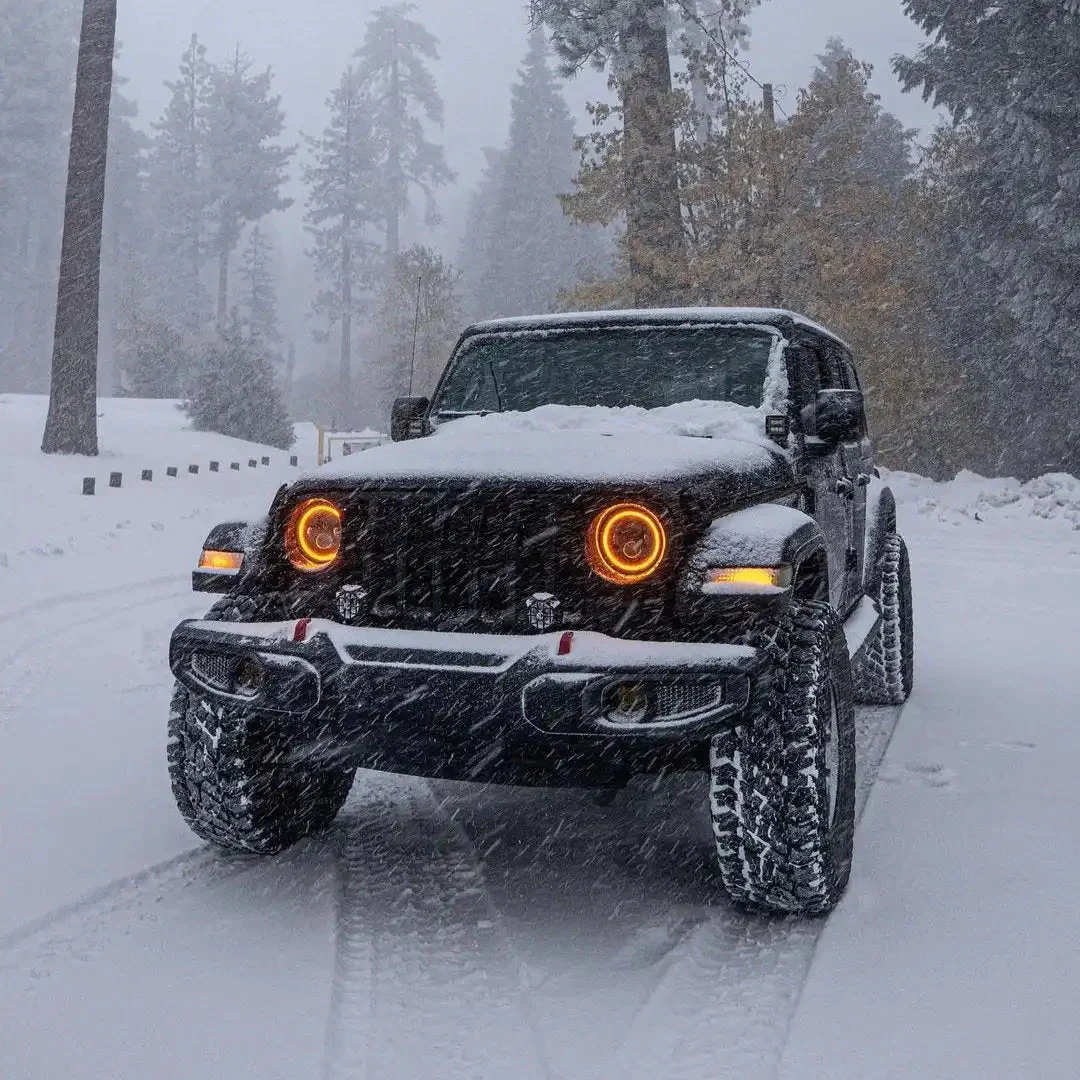

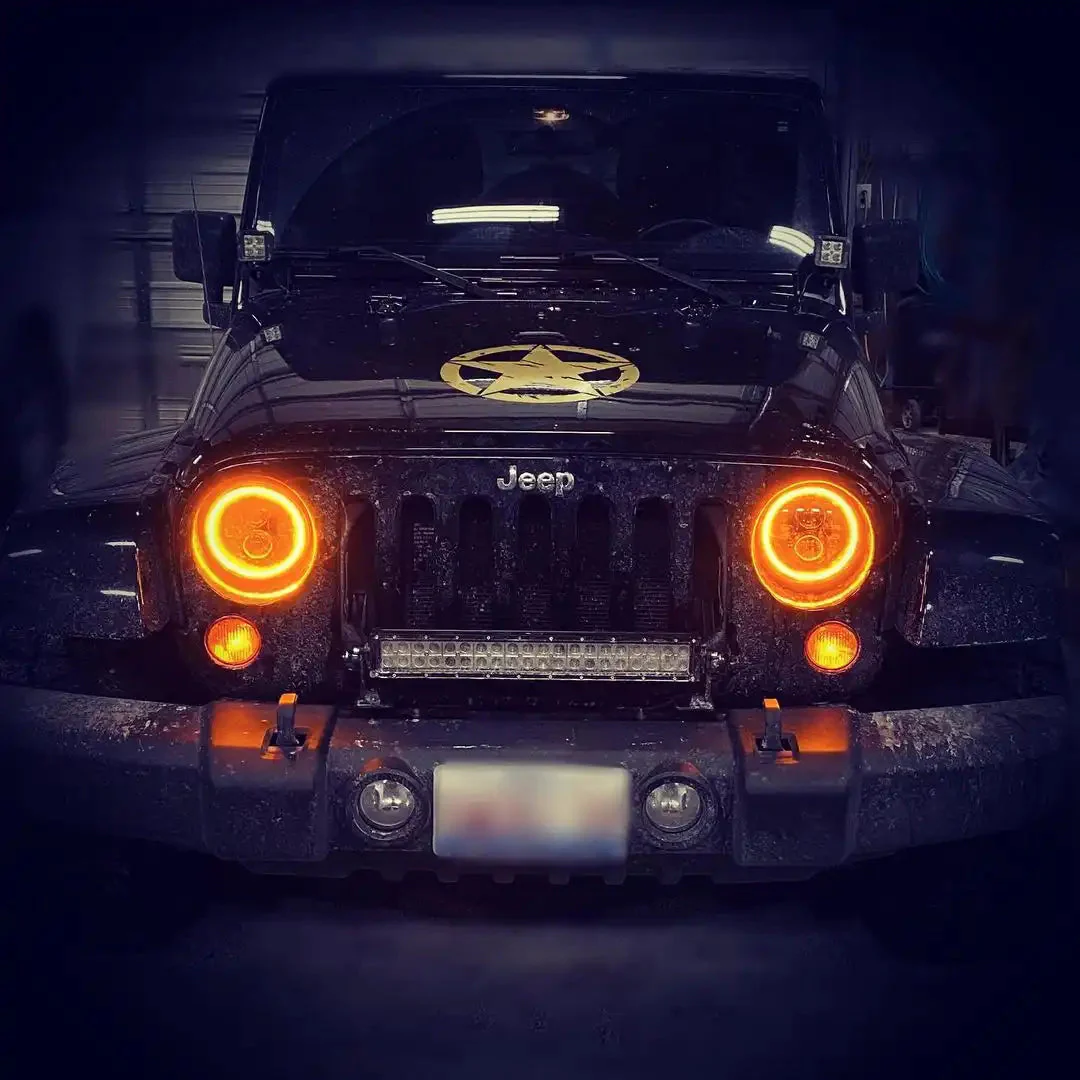

For White and Amber Halos (Road Legal Colors)

• Connect wires to the parking light harness
• Connect wires to ignition power

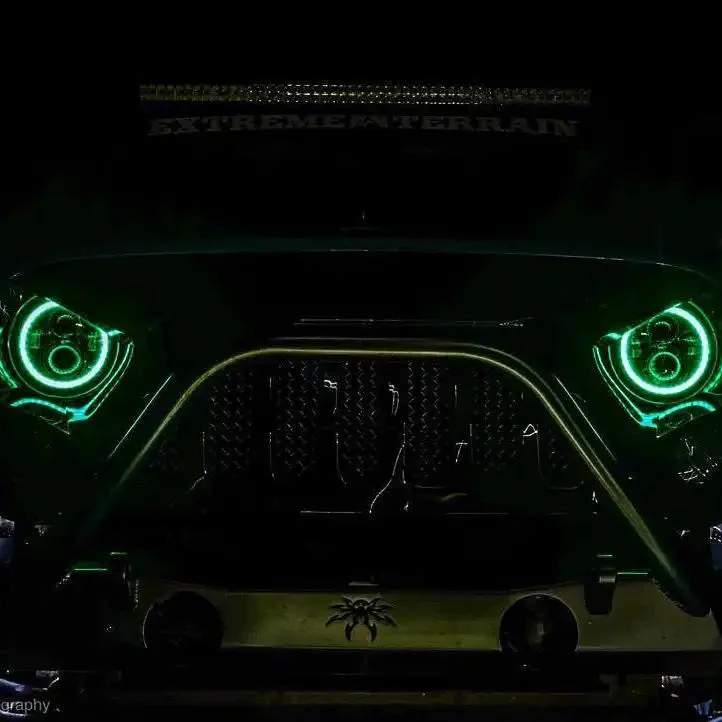

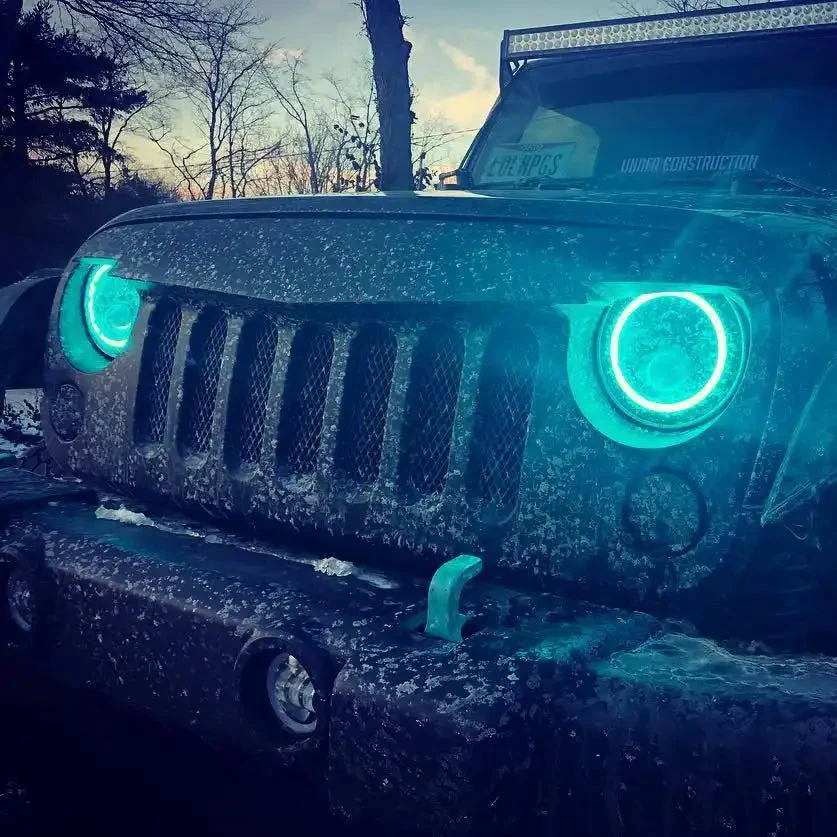

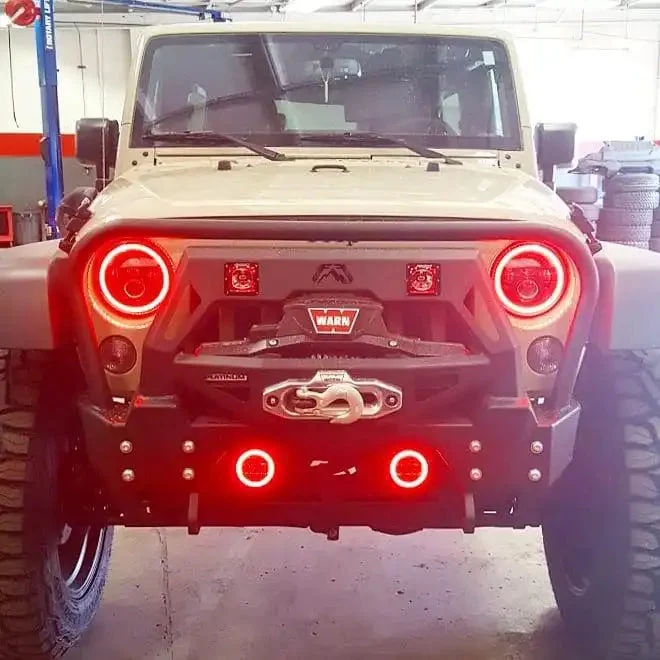

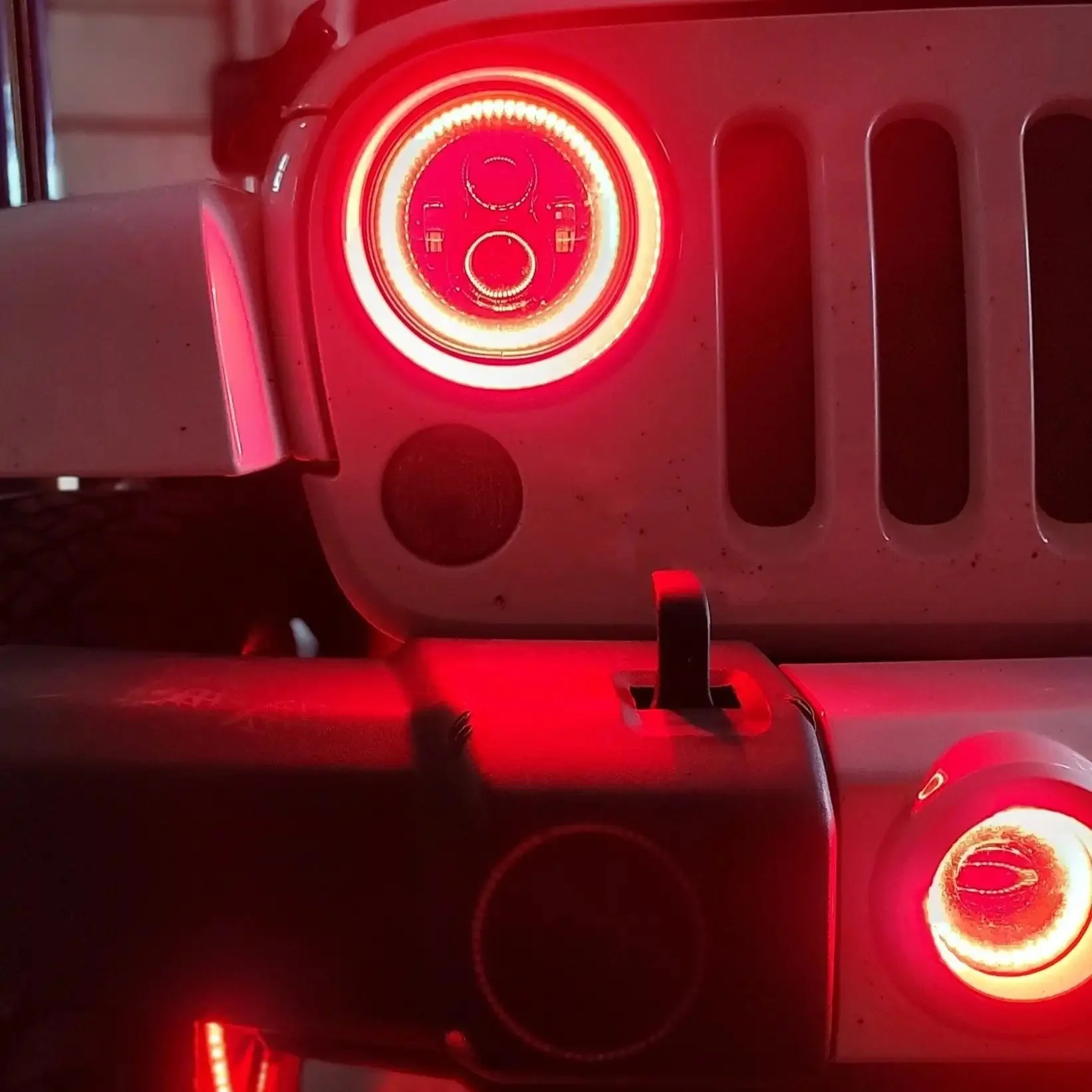

For Other Single Colors (Non-Road Legal Colors)

• Connect wires to a toggle switch view here
• Connect wires to a controller view here

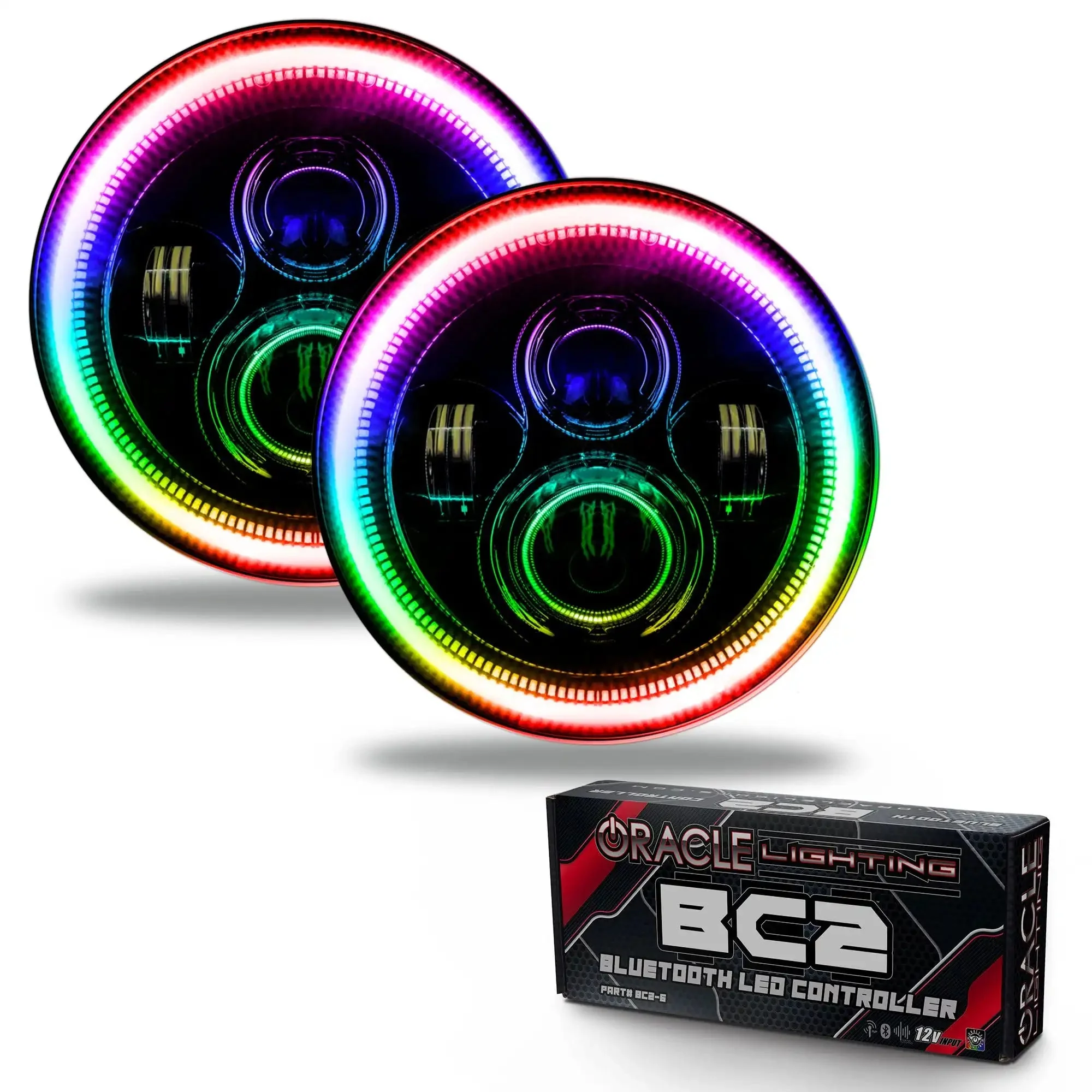

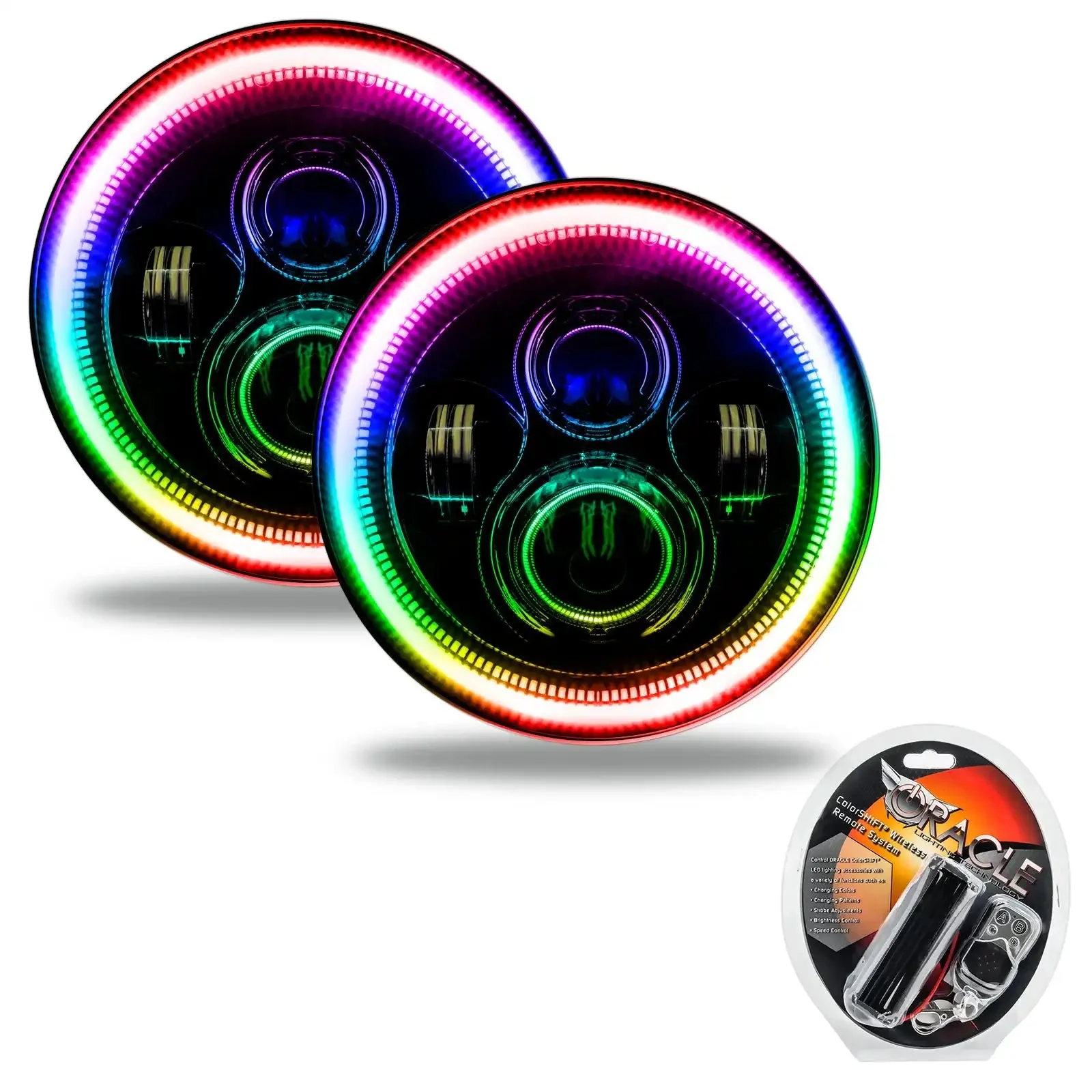

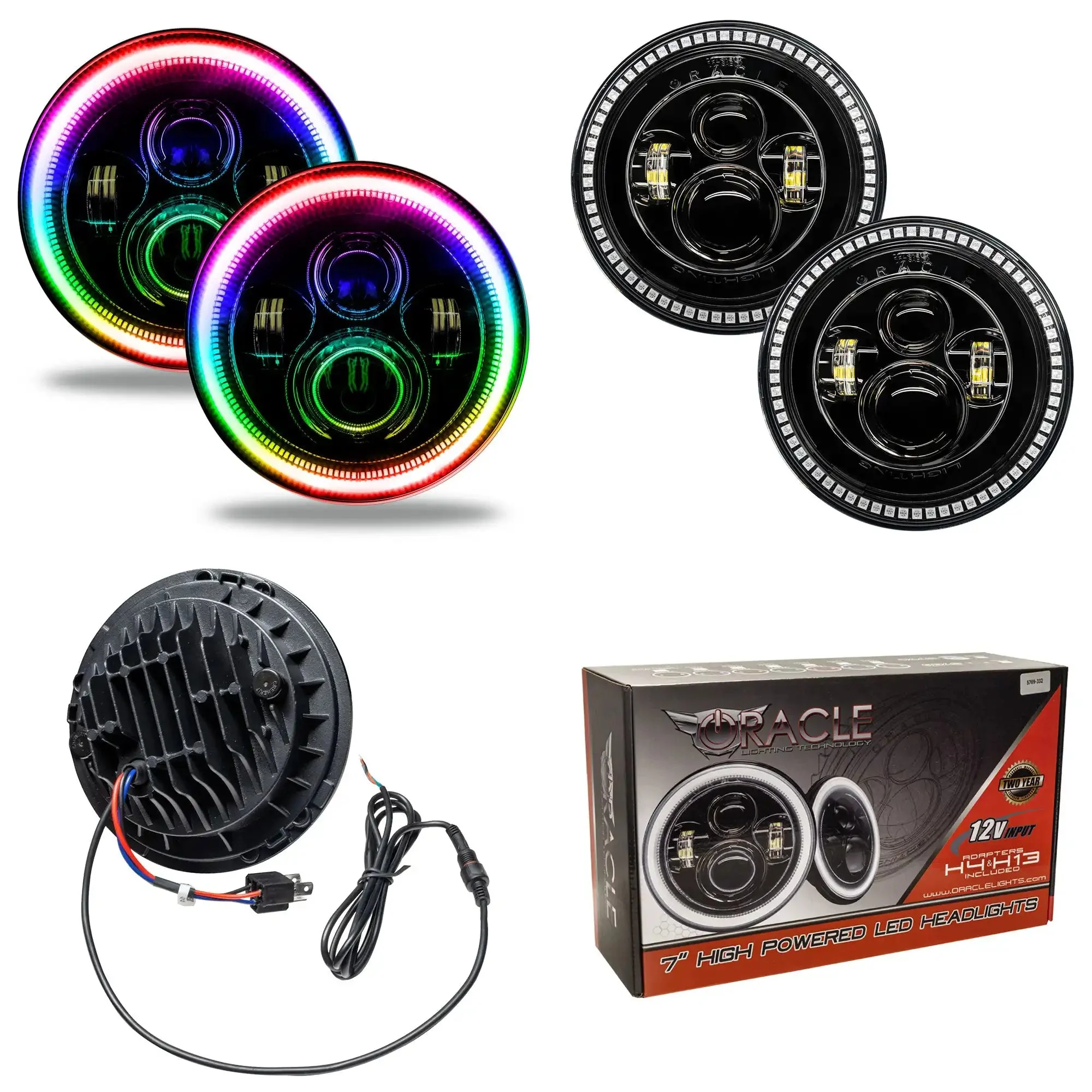

For ColorSHIFT® Halos

• Connect wires directly to the ColorSHIFT® Controller you purchased
