ORACLE Lighting Jeep Wrangler Sport JL Front Turn Signal/ DRL Switchback 7443CK Bulb (Pair)

Product Features:
- Dual-Color Amber and White LED
- High-Output design much brighter than OEM
- High Performance Aluminum Construction
- Ultra Efficient 2-Piece Heat Sink Design
- 2 year warranty

In the Box:
- (2) ORACLE Lighting Jeep Wrangler Sport JL Front Turn Signal/ DRL Switchback 7443CK Bulbs

The JL Sport's Factory Fender Turn Signals Deserve Better Than Stock Amber

If you own a Jeep Wrangler JL Sport or Sport S, you already know the limitation: your front fender turn signal/DRL housings use factory amber incandescent bulbs — and there's no factory LED upgrade package available for this trim level the way there is on the Sahara and Rubicon. The result is a dim, warm-yellow signal light that looks out of place on an otherwise capable, modern Wrangler.

These error-free LED bulbs are designed to work WITHOUT the use of load equalizers by communicating with your vehicle's CAN Bus computer system and prevent "bulb out" error messages. The ORACLE 7443CK switchback delivers what the factory never offered on the Sport trim — white running light output during normal operation, switching instantly to bright amber when the turn signal activates — all in a plug-and-play bulb that speaks your JL's CANBUS language natively.

Part Number: 5111-023
Fitment: 2018–2025 Jeep Wrangler JL Sport and Sport S — front fender turn signal/DRL positions only
Note: This bulb uses the 7443CK (SRCK) socket — not compatible with the standard 7443 socket found on non-Sport JL trims

What "Switchback" Means — and Why the 7443CK Socket Matters

Dual-Color Switchback Operation — White and Amber From One Bulb

A switchback bulb is a single LED unit that operates in two distinct colors depending on input signal: white when used as a daytime running light or parking light, and amber when the turn signal circuit is activated. The transition is instant — no warm-up, no delay, no compromise. The dual-color amber and white LED design features a high-output construction much brighter than OEM, giving the JL Sport's front fender lights a clean white presence during normal driving and a bright, unmistakable amber signal when turning — the same premium two-tone look factory-equipped on higher JL trim levels.

The 7443CK Socket — Why You Can't Use a Standard 7443 Here

The 7443-CK is like the traditional 7443 bulb except the ground terminals are located on the same side of the connector. If the ground terminals are located on the opposite side of the connector, then it more than likely is a standard connector. This is a critical distinction that trips up many JL Sport owners who purchase standard 7443 switchback bulbs only to find they don't function correctly. Many late-model Toyota cars and trucks as well as Jeep Wrangler JL Front Turn Signals are a CK type. Examine the original bulb — most CK bulbs will say "SRCK" on the base. If you install a standard LED bulb into a CK socket, only one brightness level will illuminate regardless of turn signal state — and the bulb may cause a short circuit. The ORACLE 5111-023 is purpose-built for the CK socket, ensuring correct dual-color operation from day one.

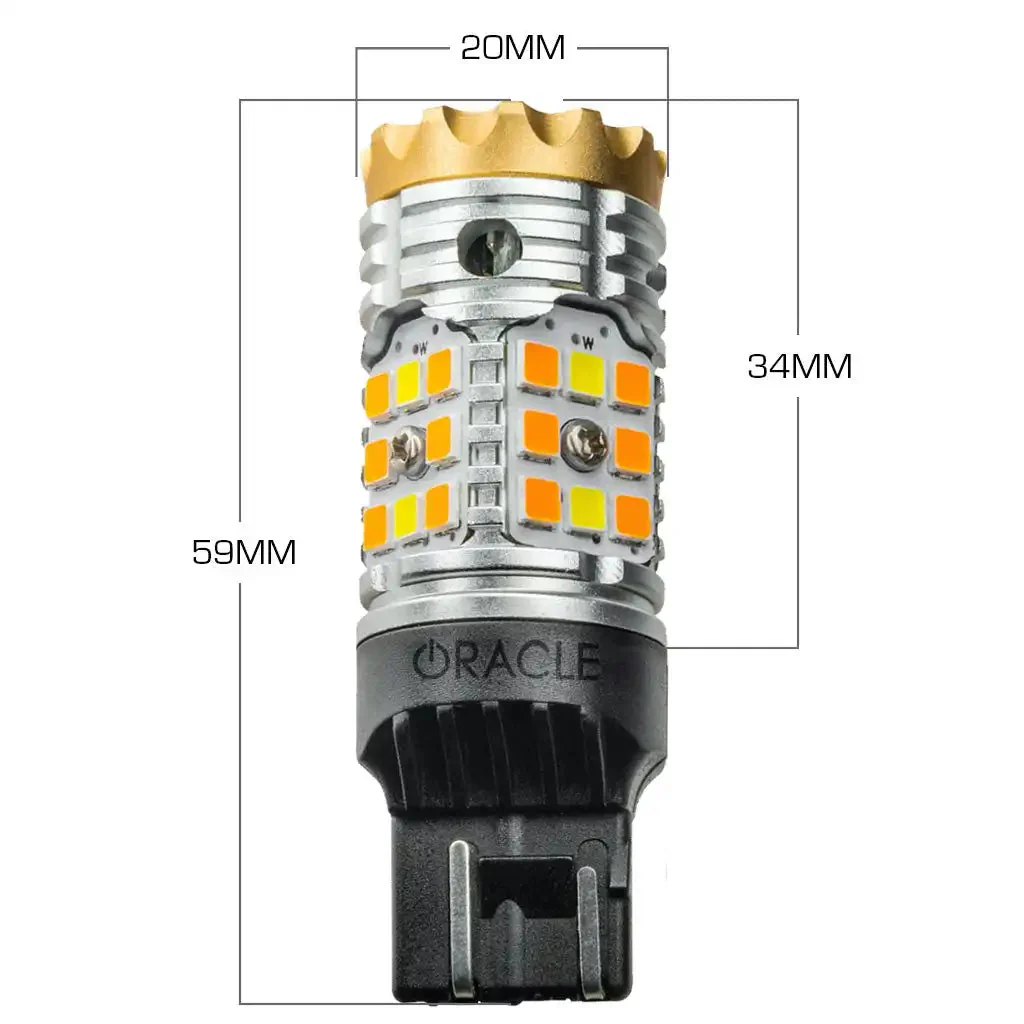

34 LEDs Per Bulb — 3-Chip Setup for Maximum Output

Each bulb features 34 LEDs with a 3-chip setup to switch between an amber or white glow for great visibility. This isn't a handful of LEDs trying to fill a housing — it's a dense, high-output array specifically designed to produce even, uniform light distribution across the fender housing lens. The amber turn signal output is consistently described by real owners as dramatically brighter than the factory incandescent, while the white DRL output delivers a clean, modern running light presence.

CANBUS Error-Free — No Resistors, No Hyper-Flash, No Workarounds

Native CANBUS Communication — The Right Way to Do It

These error-free LED bulbs are designed to work WITHOUT the use of load equalizers by communicating with your vehicle's CAN Bus computer system and prevent "bulb out" error messages. This is the key engineering differentiator between the ORACLE 5111-023 and generic 7443CK LED alternatives. Generic LEDs draw less current than the factory incandescent bulbs — which the JL's body control module interprets as a burned-out bulb, triggering hyper-flash and a dashboard warning. The ORACLE bulbs communicate directly with the CANBUS system to report correct bulb status, eliminating error messages without requiring external load resistors.

A Real-World Note on Extended Turn Signal Use

For a small number of JL Sport owners — particularly those on 2021–2022 model years — a "bulb out" warning can occasionally appear after an extended turn signal activation (such as a long stop light). This can be resolved by adding a 50W 6-ohm resistor for each turn signal — a simple, inexpensive fix that ORACLE will advise on and supply. The majority of JL Sport owners install these bulbs with zero issues and zero resistors — this is a minority-case consideration, not a design flaw. If you experience intermittent warnings after installation, a Tazer or JScan programmer can also be used to set the front turn signals to LED mode, fully resolving the issue.

Built to Last — Premium Aluminum Construction and 2-Year Warranty

High-Performance Aluminum Construction With 2-Piece Heatsink

These bulbs feature high-performance aluminum construction with an ultra-efficient 2-piece heat sink design. LED longevity is directly tied to thermal management — the better a bulb manages heat, the longer the LEDs last and the more consistent the output remains over time. The 2-piece aluminum heatsink design maximizes surface area for heat dissipation in the compact fender housing, ensuring the ORACLE switchback bulbs maintain full output long after generic alternatives have degraded or failed.

2-Year Warranty — ORACLE's Confidence in Writing

These bulbs are backed by a 2-year warranty — a meaningful commitment for a bulb-level product, and significantly longer than the 1-year warranty offered by many competing LED upgrade products. The 2-year coverage reflects ORACLE's confidence in the aluminum construction, CANBUS integration, and LED quality used throughout the 5111-023.

Installation — 10 Minutes. No Tools. No Resistors.

Real JL Sport owners consistently describe the installation experience as one of the easiest modifications on the platform. These are easy to install — just be aware that if they do not work correctly, remove the bulb and rotate 180 degrees then reinstall. The fender turn signal housing on the JL Sport is accessed from the front wheel well — no dash disassembly, no headlight removal, no special tools. The bulb twists out, the ORACLE 7443CK twists in, and the housing clips back into place. Total time: under 10 minutes for both sides. If the colors appear reversed on initial installation (white activating on turn, amber on park), simply rotate the bulb 180 degrees and reinsert — a 30-second correction.

Note for JL Sport owners with a "signal out" error after switching to LED: This can be resolved by changing the front turn signals to LED at your local dealership — a free or low-cost dealer programming update. Alternatively, a Tazer or JScan module enables the same fix from home.

What's in the Box

Each purchase includes two ORACLE Jeep Wrangler Sport JL Front Turn Signal/DRL Switchback 7443CK Bulbs — one for the driver side and one for the passenger side fender housing. No resistors or additional hardware are required for the majority of installations. ORACLE Part #5111-023.

Fitment: 2018–2025 Jeep Wrangler JL Sport and Sport S — front fender turn signal/DRL positions
Does NOT fit: JL Rubicon or JL Sahara (those trims use a different front turn signal configuration — see ORACLE Part #5103-003 for Rubicon/Sahara fitment)
Socket Type: 7443CK (SRCK base) — verify your factory bulb before purchasing

FAQs: ORACLE Lighting Jeep Wrangler Sport JL Front Turn Signal/DRL Switchback 7443CK Bulbs

Q: Will these fit my Jeep Wrangler JL Sahara or Rubicon?

No. The ORACLE Turn Signal LED Bulbs for the JL Rubicon and Sahara are direct OEM replacement bulbs for those trims and will not fit the Sport. The Sport and Sport S use the 7443CK socket in the front fender position — the Sahara and Rubicon use a different front turn signal configuration. If you have a Sahara or Rubicon, the correct product is ORACLE Part #5103-003. Always confirm your trim level before purchasing.

Q: How do I know if my JL uses the 7443CK socket and not a standard 7443?

Examine the original bulb — most CK bulbs will say "SRCK" on the base. If your factory bulb has "SRCK" stamped on the base and the ground terminals are on the same side of the connector, you have a CK socket and this is the correct product. If the ground terminals are on opposite sides, you have a standard 7443 socket — a different product is required. When in doubt, pull the factory bulb and look at the base before purchasing.

Q: Do I need load resistors or a CANBUS decoder to install these?

For the majority of JL Sport owners, no — these error-free LED bulbs are designed to work WITHOUT the use of load equalizers by communicating with your vehicle's CAN Bus computer system. A small number of owners on certain model years have experienced intermittent turn signal warnings after extended use — if this occurs, adding a 50W 6-ohm resistor per side resolves it completely. A Tazer or JScan programmer can also resolve the issue by setting the front turn signals to LED mode in the BCM.

Q: How does the switchback function work in practice?

During normal operation — parking lights on, engine running, no turn signal active — the bulb illuminates white, functioning as a daytime running light or parking light. When the turn signal is activated, the bulb instantly switches to bright amber for the duration of the signal, then returns to white when the signal is cancelled. The 3-chip LED setup switches between amber and white output for great visibility in both modes — amber turn output is consistently described by owners as dramatically brighter than the factory incandescent.

Q: What if the colors are reversed after installation — white on turn, amber on park?

This is a common and easy-to-fix installation situation caused by the bulb being installed 180 degrees out of position. If the bulb does not work correctly, simply remove it and rotate 180 degrees then reinstall. The two color channels in the 7443CK bulb are polarity-dependent — rotating the bulb reverses which circuit connects to which color channel, instantly correcting the operation. This takes about 30 seconds and requires no tools.

Q: How bright is the white DRL output compared to factory or the LED-equipped Sahara/Rubicon?

The white DRL output is noticeably cleaner and more modern-looking than the factory amber incandescent — delivering a crisp white running light presence that gives the JL Sport's front end a premium appearance. However, real-world owners note that the white DRL output is not as bright as the factory LED DRL package available on the Sahara and Rubicon trims. The amber turn signal output is very bright and the white LED is functional as a DRL, though not as bright as the factory LED package available on higher trims. For the Sport trim where no factory LED DRL option exists, these represent a meaningful and visually appealing upgrade.

Q: What warranty do these bulbs come with?

These bulbs are backed by a 2-year warranty covering defects in materials and workmanship — one of the longest warranties available for a direct LED bulb replacement product in this category. The 2-year coverage is backed by ORACLE's USA-based customer support team, which real owners confirm is responsive and helpful when issues arise.
